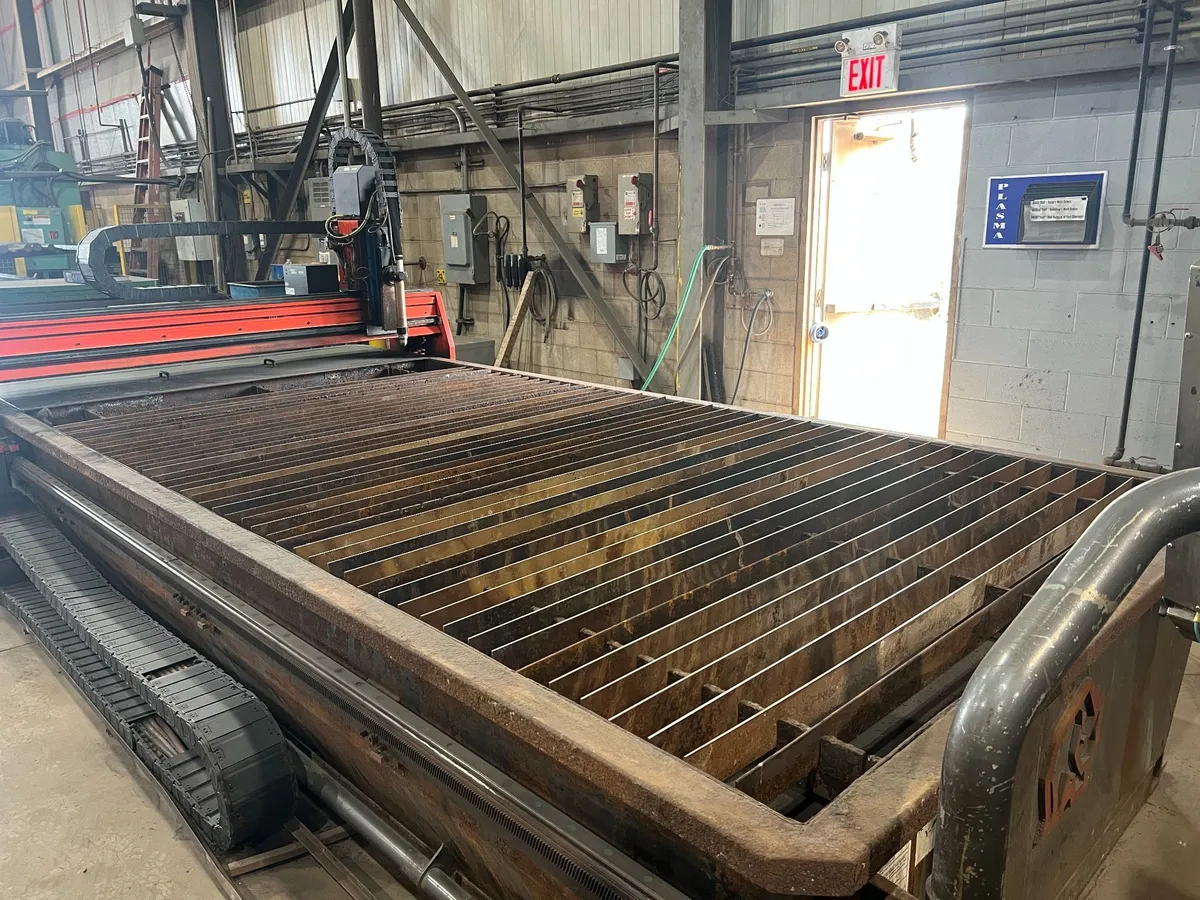

2018 Rhino Shop Series Plasma Table with Linatrol Infinity CNC Control, USB Drive, Thermal Dynamics Ultra Cut 200XT Plasma Source.
Cutting Area...........................16' x 8'
Maximum Cutting Carbon Steel...........1-1/2"
Maximum Cutting Aluminum..............1"
Maximum Cutting Stainless Steel........1"
THERMAL DYNAMICS SOURCE:
Rated Output (Amps)....................200 A
Output Range (Amps)....................5-200 A
Output (Volts).........................180 V
Input Volts (Volts, Phase, Hertz)......380 V, 3 ph, 50-60 Hz, 400 V, 3 ph, 50-60 Hz, 480 V, 3 ph, 50-60 Hz
Input Amps (Amps, Volts)...............65 A @ 380 V, 62 A @ 400 V, 52 A @ 480 V
Duty Cycle (@ 104ºF / 40º C)...........100% (40 kW)
Max OCV................................425 V
Plasma Gas.............................Air, O2, Ar-H2, N2 @ 120 psi, (8.3 bar) and Ar for marking with DFC 3000
Shield Gas.............................Air, N2, O2 @ 120 psi (8.3 bar), H20 @ 10 GPH (0.6 l/min)
Power Supply Weight....................451 lbs (205 kg)
Dimensions.............................48.0″ x 27.5″ x 40.6″ (1219 mm x 698 mm x 1031 mm)
Certifications.........................CSA, CE, CCC
Linatrol Infinity CNC Control with USB Drive
Thermal Dynamics Ultra Cut 200 XT
Manual Handheld Torch Hookup
Precision Linear Rails
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
