Hyundai Wia L2100SY
Have one to sell?
ConditionUsed
1 available

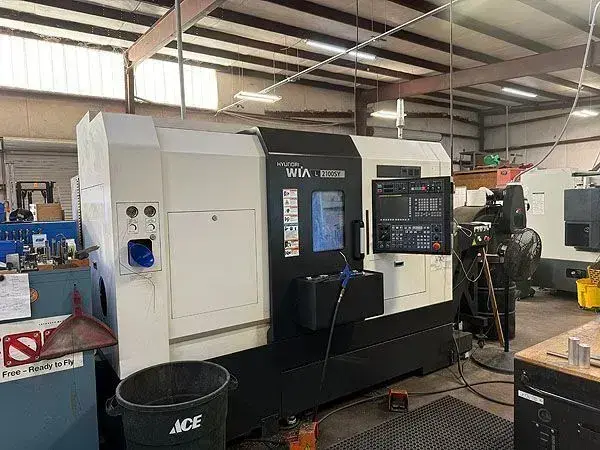

2018 Hyundai Wia L2100SYwith Fanuc 32i-B Control, 8" & 6" 3-Jaw Chucks, Tool Setter, Parts Catcher, 6 Live Holders, and approx. 3,000 Cutting Hours.
Maximum Swing...................24.8"
Max Turning Dia.................13.2"
Max Turning Length..............17.9"
Main Motor......................20 HP
Spindle Torque..................187.5 ft lbs.
Spindle Speed...................4,500 RPM
Bar Capacity....................2.6"
Sub-Spindle Motor...............10 HP
Sub-Spindle Torque..............44 ft lbs.
Sub-Spindle Speed...............6,000 RPM
Sub-Spindle Bar Capacity........1.4"
X & Y-Axis Travel...............8.3" (210mm) / 3.9" (100mm)
Z & ZB-Axis Travel..............22.8" (580mm) / 19.7" (500mm)
X & Y-Axis Rapids...............709 IPM (18m/min) / 472 IPM (12m/min)
Z & ZB-Axis Rapids..............945 IPM (24m/min)
Number of Tools.................12 Station Turret
Milling Speed...................5,000 RPM
Fanuc 32-I Model B Control
8" & 6" 3-Jaw Chucks
Tool Setter
Parts Catcher
Chip Conveyor
Approx. 6 Live Toolholders
Misc. Tooling Included
**APPROX. 3,000 CUTTING HOURS**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
