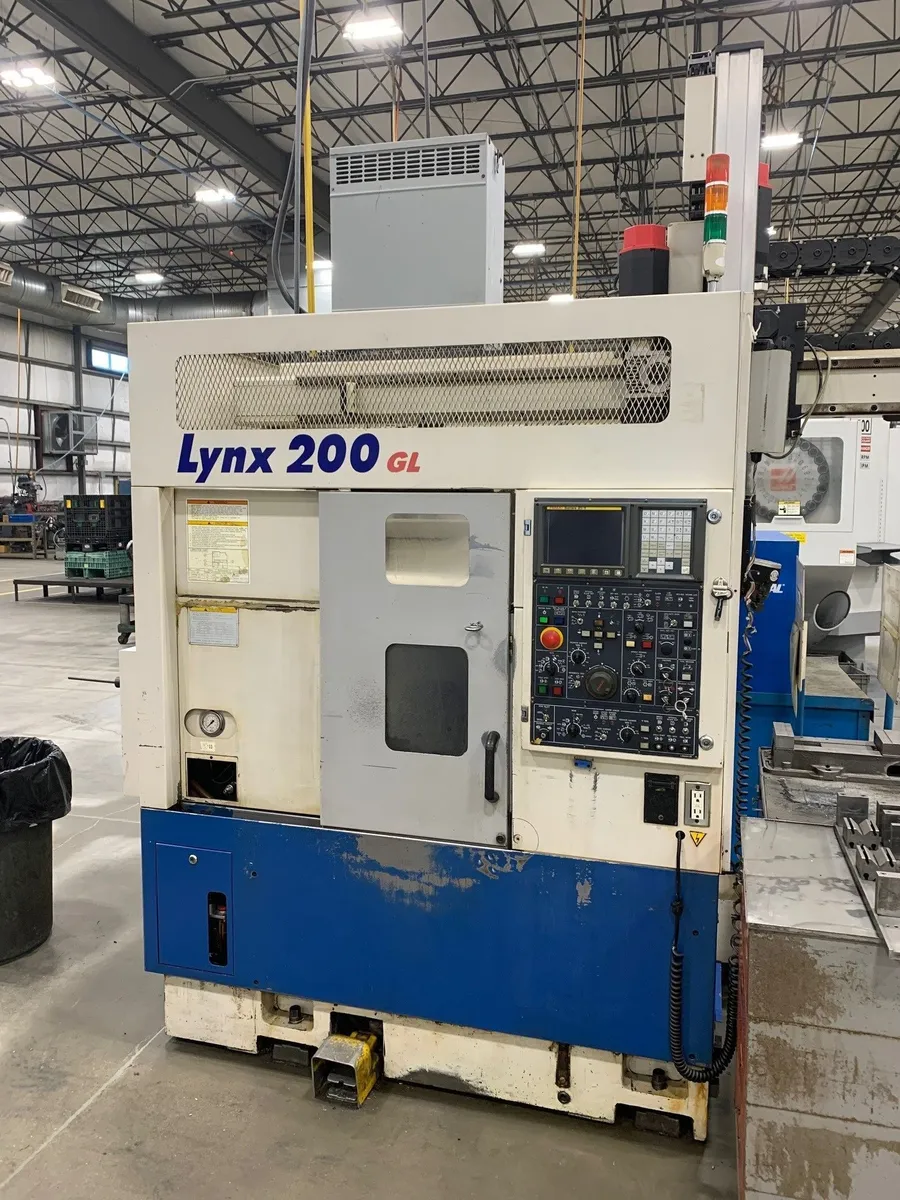

Daewoo Lynx 200 GL CNC Turning Center
Have one to sell?
ConditionUsed
1 available
1999 Daewoo Lynx 200 GL CNC Turning Center with Fanuc 21-T Control, 8" Chuck, Parts Catcher, and Gantry Loader
Swing Over Bed.....................18.11"
Max Turning Diameter...............11.02"
Max Turning Length.................11.81"
X-Axis Travel......................6.3"
Z-Axis Travel......................13.0"
Spindle Motor......................15 HP
Spindle Nose.......................A2-5
Spindle Bore.......................2"
Max Bar Capacity...................1.75"
Spindle Speed......................5000 RPM
Rapid Traverse X Axis..............787 IPM
Rapid Traverse Z Axis..............945 IPM
Turret Capacity....................12 Stations
Turret Index Time..................0.15 Second
Electrics..........................220V/3PH/60HZ
Weight.............................7,600 LBS
Loaded on your Truck
Fanuc 21-T CNC Control
RS-232 Port
8" 3-Jaw Kitagawa Hydraulic Chuck
Tool Presetter
Rigid Tapping
12 Station Turret
Parts Catcher
Coolant System
Foot Switch
Turbo Chip Conveyor
Custom Built Spindle Liner with Adjustable Stop
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
