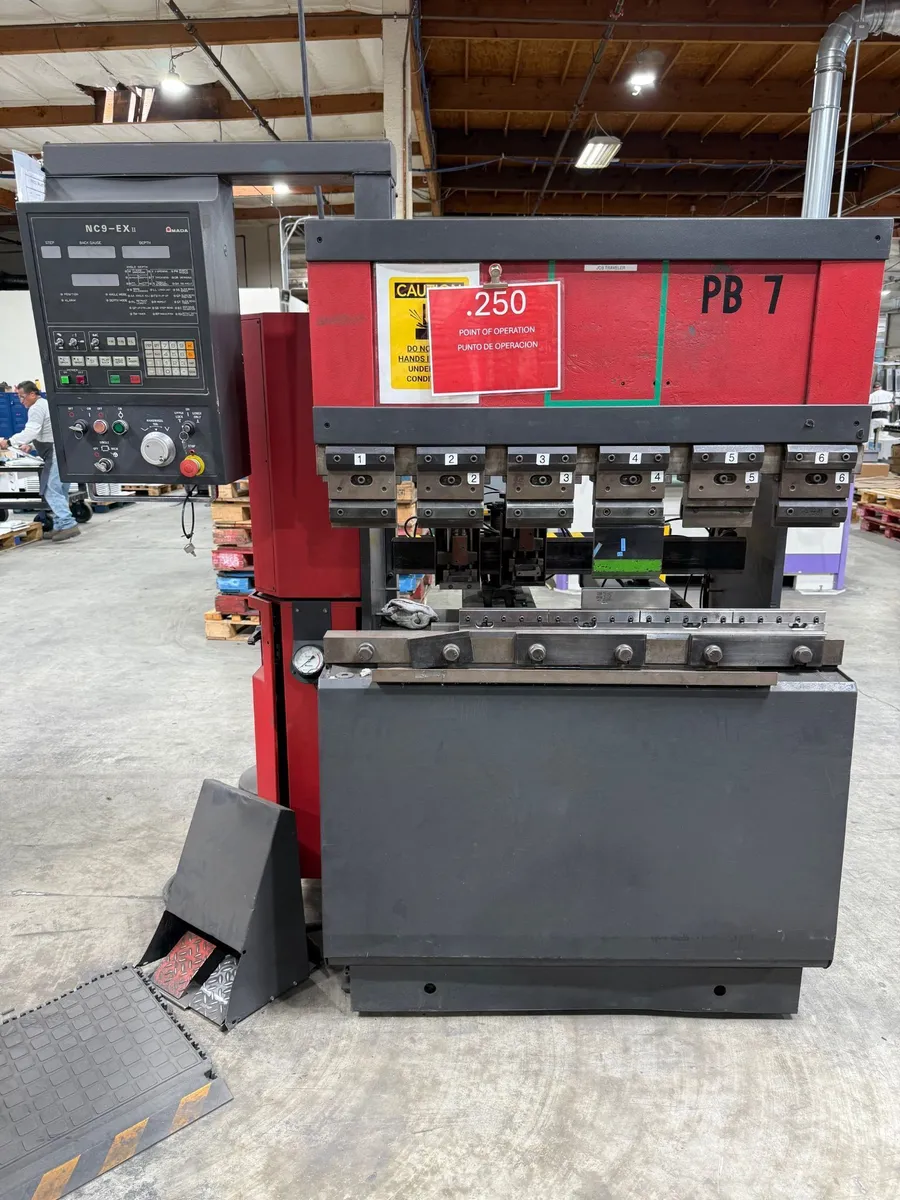

Amada FBD-3512E CNC Press Brake - NC9-EXII Control, 35 Ton Capacity, 49.3" Max. Bending Length, 7.88" Throat Depth, 14.57" Open Height, 3.94" Stroke.
Capacity...............................35 Tons
Table Length...........................47.3"
Maximum Bending Length.................49.3"
Distance Between Uprights..............40.2"
Throat Depth...........................7.88"
Maximum Stroke Length..................3.94"
Open Height............................14.57"
Motor..................................3 HP
Power Required.........................4.7 KVA
Hydraulic Oil Reservoir................7.92 Gallons
Ram Speed: Approach....................177 IPM
Bending................................31 IPM
Return Speed...........................22 IPM
Electrical Requirements................220/460/3/60
Approx. Weight.........................4,000 LBS
Amada NC9-EXII 3-Axis CNC Control
BackGauge
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
