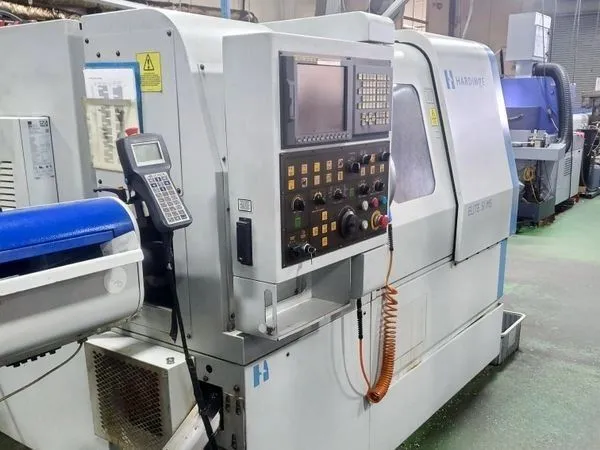

2008 Hardinge Elite 51MS Multi-Axis CNC Turning Center with Fanuc 18i-TB Control, Sub-Spindle, Live Tooling, Two Live Tools, Tool Presetter, and 6' Iemca Prodigy Barfeed.
Max Swing Over Bed............21"
Max Turning Diameter..........13.4"
Max Machining Length..........14"
Center Distance...............16"
Spindle Motor.................15 HP
Spindle Nose..................A2-6
Spindle Bore..................2.4"
Bar Capacity..................2"
Spindle Speed.................5000 RPM
Spindle Torque................70 FT LBS
Sub-Spindle Nose..............A2-5
Sub-Spindle Speed.............6000 RPM
Tools.........................12
Milling Motor.................5 HP
Milling Speed.................6000 RPM
Approx. Weight................7,500 LBS
Plus Rigging & Freight
GE Fanuc Series 18i-TB
Iemca Prodigy 6' Barfeed
(2) Cross Drill Live Tools
Sub Spindle
Live Tooling
Glass Scales
Tool Presetter
Extra M Codes
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
