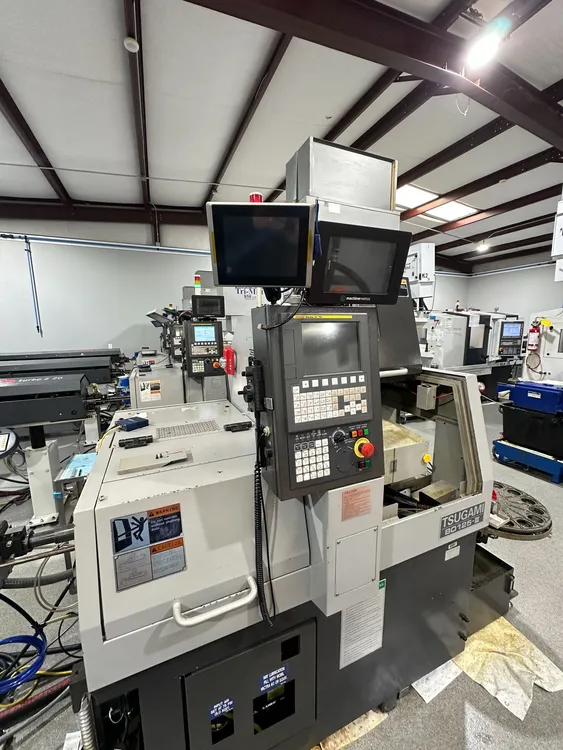

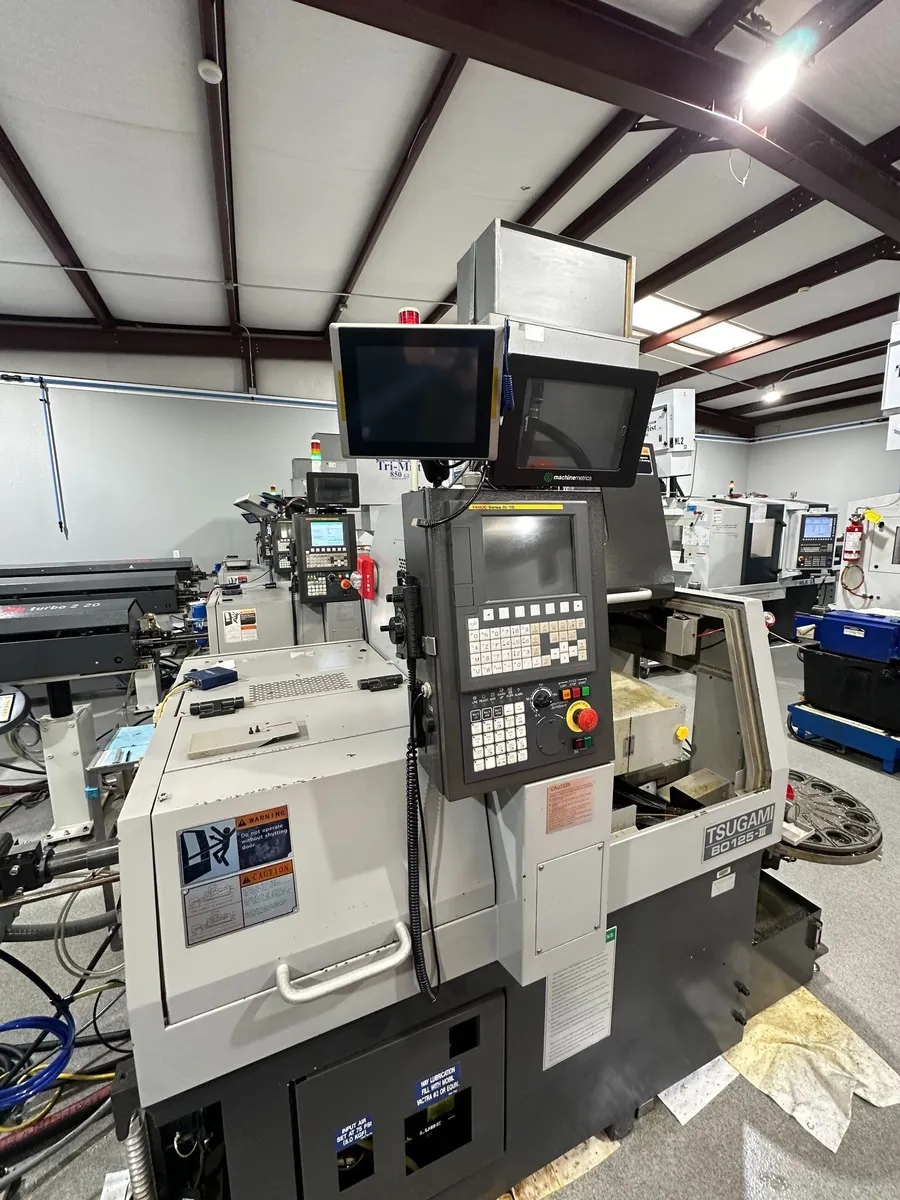

Tsugami BO125-III Swiss Lathe

Number of Axes...............................5
Sliding Headstock / Guide Bushing............YES
Front Drilling...............................4
Back Drilling Min/Max........................4/8
Max Tool Spindle Slotting Cutter Diameter....1.18" (30mm)
Sub Spindle Front Ejection Max Length........3.9" (100mm)
Sub Spindle Maximum Machining Diameter.......0.5" (12.7mm)
Maximum Headstock Stroke.....................8.26" (210mm)
Maximum Machining Diameter...................0.5" (12.7mm)
Live Milling.................................8,000 RPM (Max)
Spindle Speeds...............................12,000 RPM
Number of Tool Positions.....................21
Coolant Motor................................0.36 HP (.25 kW)
Axes Motors..................................0.67 HP (.5 kW)
Rapid Traverse Rate..........................32 M/Min
Turning Tools Tooling Size...................1/2" Square
Main/Sub Spindle ER Collet Holders...........20 MM Diameter
Coolant Tank Capacity........................180L (47 Gal.)
Compressed Air Requirements..................60 PSI
Input Power..................................11.0 KVA
Machine Dimensions...........................65.2" x 44.3" x 66.9"
Weight.......................................4,409 lbs. (2,000 kg)
