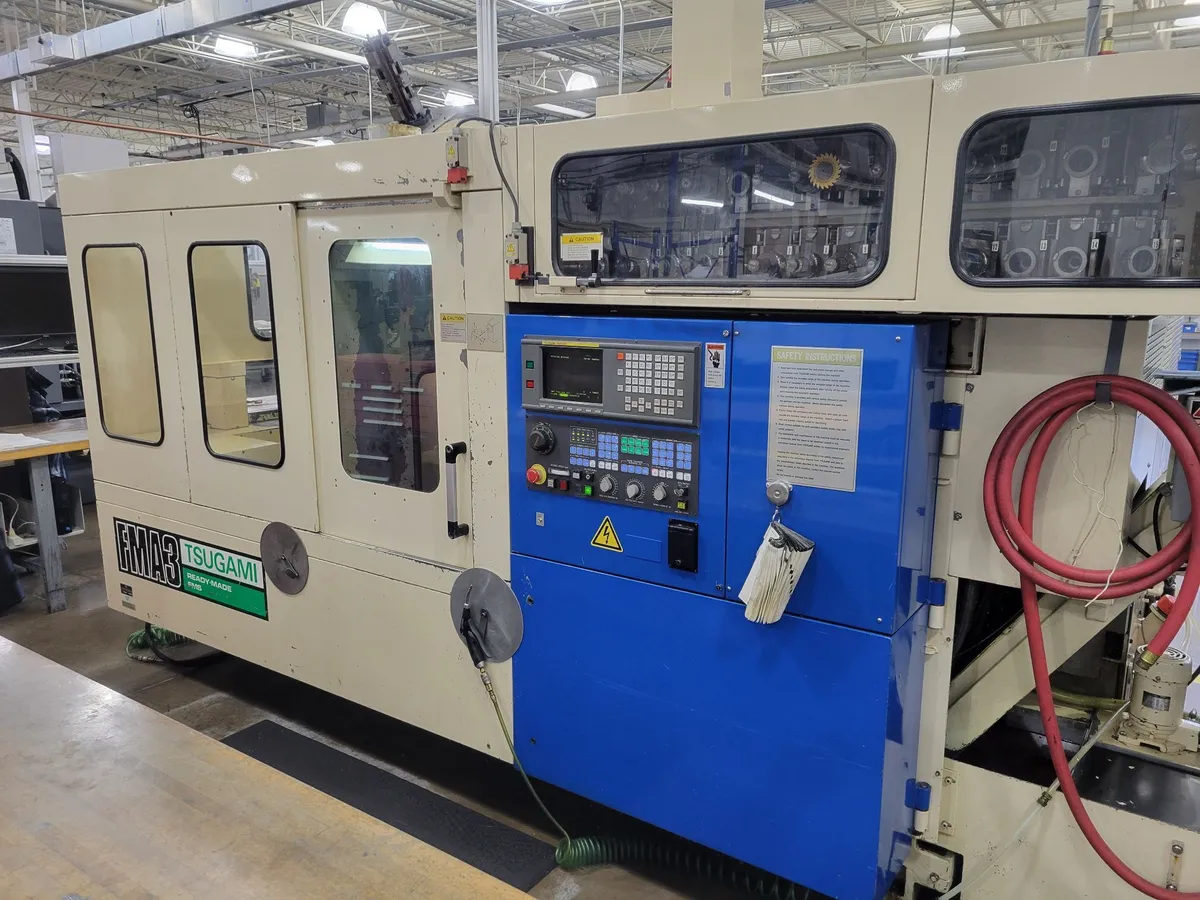

Tsugami FMA3 11 Pallet HMC
Have one to sell?
ConditionUsed
1 available
Tsugami FMA3 11 Pallet HMC with Fanuc Control, 10,000 RPM Spindle, 62 ATC, 11 Station Pallet Pool, Auto Part Gauging, Tool Breakage Detection, and Chip Conveyor.
Pallet Size...............11.75" X 11.75"
Max Workpiece Weight......176 lbs
Maximum Workpiece Size....11.81" x 11.81" x 14.17"
X-Axis Travel.............14.17"
Y-Axis Travel.............13"
Z-Axis Travel.............15.74"
Spindle Motor.............10 HP
Spindle Taper.............CAT-40
Spindle Speed.............10,000 RPM
Rapid Traverse Rates......945 IPM
Feed Rates................236 IPM
Tool Changer..............62
Tool Change Time..........1 Second
Tool Change Chip Time.....5 Seconds
Dimensions................159 x 98 x 108
Weight....................23,148
Fanuc CNC Control
10,000 RPM Spindle
62 Station ATC
11 Station Pallet Pool
Auto Part Gauging
Tool Breakage Detection
Chip Conveyor
**REBUILT SPINDLE 7/2020**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
