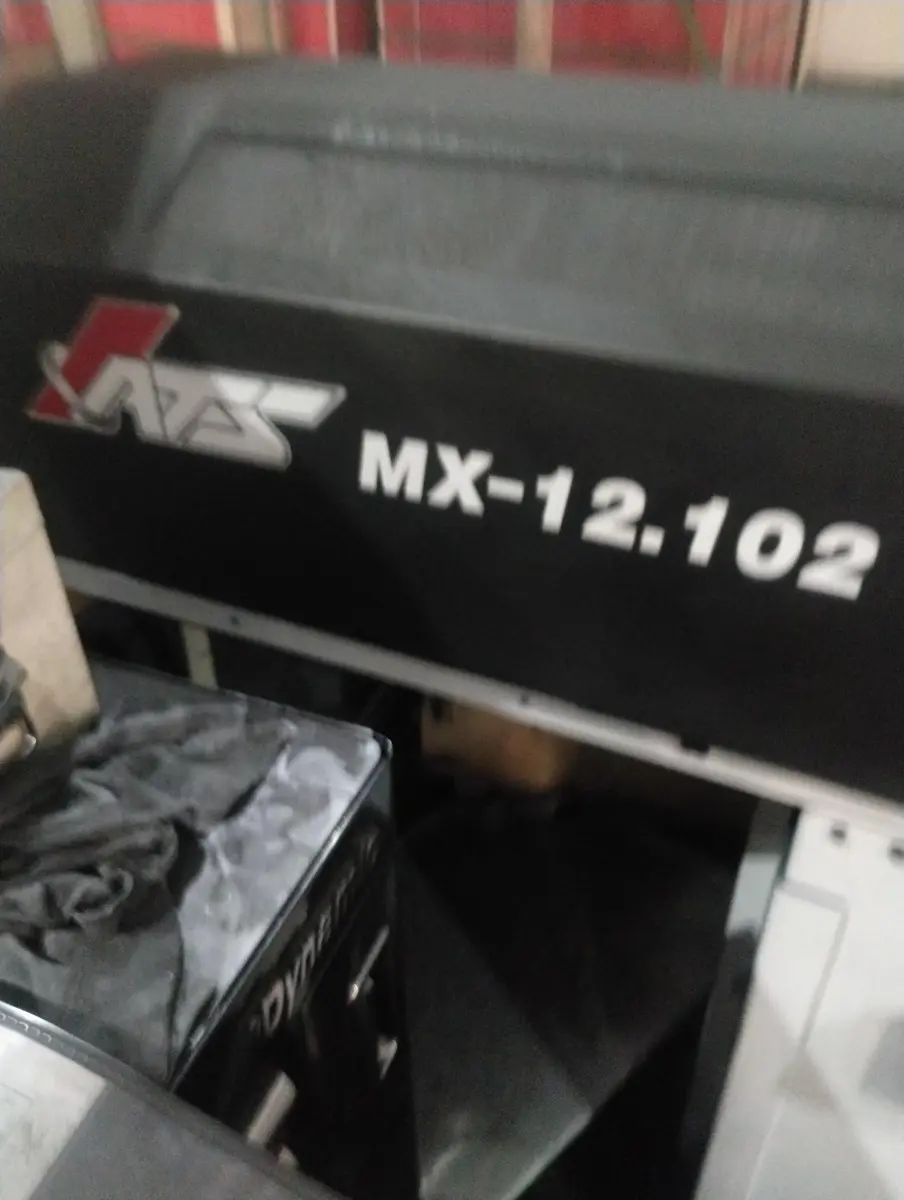

ATS MX-12.102 Bar Feeder

Min/Max Bar Diameter (inches)............0.5" – 4"
Max Bar Length (inches)..................72"
Max Stroke (inches)......................80"
Approx. Changeover Time..................Up to 2 min. + spindle liner change
Materials Trap Capacity..................QTY 25 (1" diameter bars)
Weight Net/Gross lbs.....................850/1260
Reloading Driven by......................Electric Motor
Feeding Driven by........................400W Servo Motor
Feeding Method...........................Feed to Turret, Serve Feed, Sub-Spindle Pull

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
