Mazak QTN-350MSY with Barfeed
Have one to sell?
ConditionUsed
1 available
2009 Mazak QTN-350MSY with Barfeed with 15" and 10" Chucks, Y-Axis, Live Tooling, Sub-Spindle, LNS Barfeed, Super Flow 1,000 PSI Coolant, Parts Conveyor, and 7 Live Holders.
SWING OVER BED......................29.5"
MAX CUTTING DIAMETER................14.75"
MAX CUTTING LENGTH..................25.6"
X-AXIS TRAVEL.......................11.75"
Y-AXIS TRAVEL.......................4" (+/- 2")
Z-AXIS TRAVEL.......................26.25"
BAR CAPACITY........................4"
SPINDLE BORE........................4.4"
SPINDLE NOSE........................A2-11
SPINDLE MOTOR.......................30 HP
SPINDLE SPEED.......................3,300 RPM
SUB SPINDLE NOSE....................A2-8
SUB SPINDLE MOTOR...................20 HP
SUB SPINDLE SPEED...................4,000 RPM
TURRET CAPACITY.....................12
LIVE MILLING SPEED..................4,000 RPM
MAZATROL MATRIX NEXUS CONTROL (VOICE ADVISER)
LNS QUICK LOAD SERVO S3 MAGAZINE BAR FEEDER (5’)
Y-AXIS
LIVE MILLING
SUB SPINDLE
HAINBUCH COLLET CHUCK (MAIN)
15”, 3-JAW ATS (400-128) HYDRAULIC CHUCK (MAIN)
10” 3-JAW KITAGAWA (B-210) HYDRAULIC CHUCK (SUB)
MAZAK SUPERFLOW T8-1000 HIGH-PRESSURE COOLANT SYSTEM (1,000 PSI)
TOOL PRESETTER
PARTS CATCHER
CHIP CONVEYOR
PARTS CONVEYOR
(7) LIVE TOOL HOLDERS

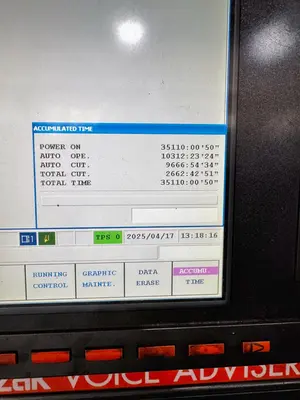

**AS OF APRIL 2025, CUTTING TIME – 9,616 HOURS**
**SEE PHOTOS FOR FULL LIST OF MAZATROL CONTROL OPTIONS**
**MIST COLLECTOR SHOWN IN PHOTOS IS NOT INCLUDED WITH THE MACHINE**
**ALL TOOL HOLDERS SHOWN IN THE TURRET WILL GO WITH THE MACHINE (NOT THE INSERTS)**
**FULL REPLACEMENT COST, AS EQUIPPED - $350,000**
**MACHINE CUT PRIMARILY ALUMINUM & CARBON STEEL**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
