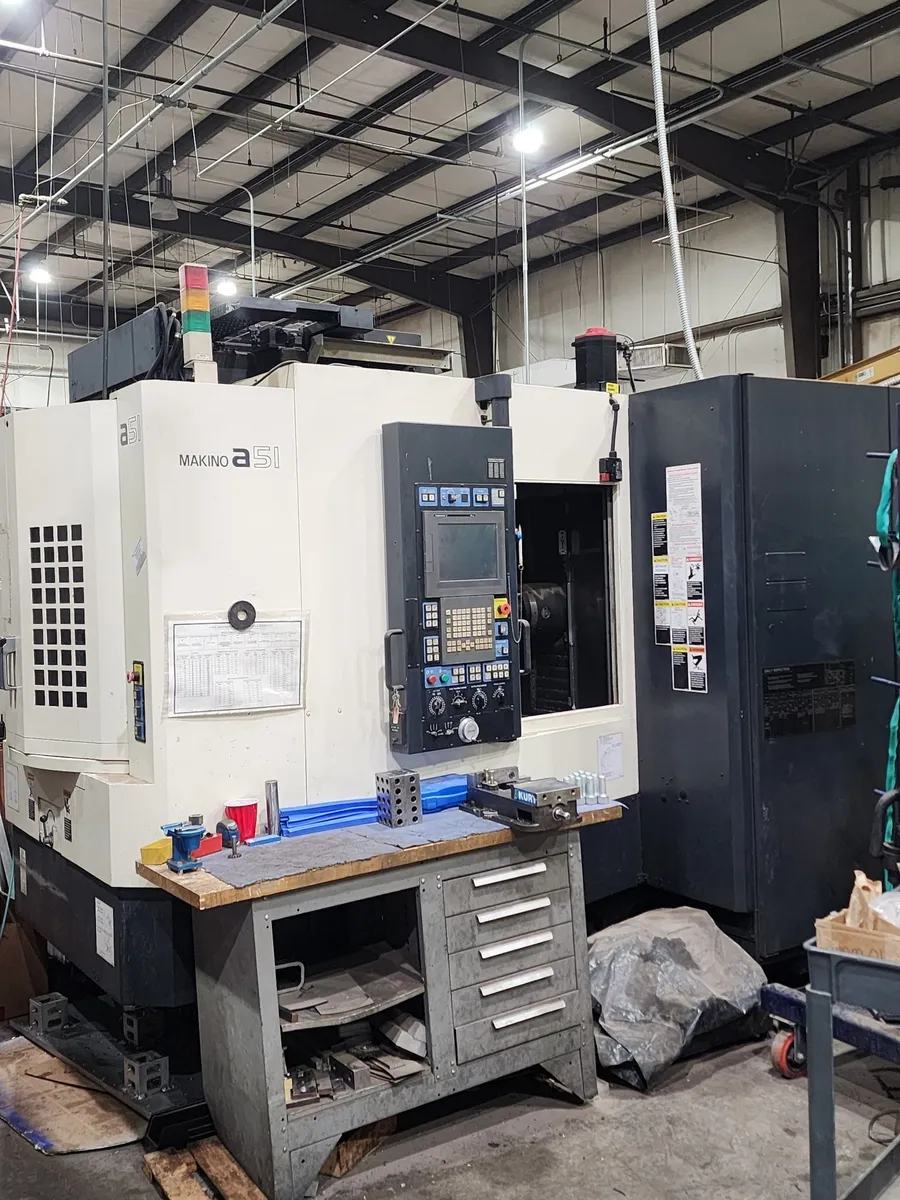

2008 Makino a51 Horizontal Machining Center with Full 4th Axis, and 134 ATC
Pallet Size........................15.7" X 15.7"
Table Load Capacity................881 Lbs
Spindle Center To Table Top........3.1" - 25.2"
Spindle Nose To Table Center.......2.8" - 26.4"
Pallet Indexing....................0.001 Degree
X-Axis Travel......................22"
Y-Axis Travel......................25"
Z-Axis Travel......................25"
Main Motor.........................33.5 HP
Spindle Taper......................CAT-40
Spindle Speed......................14000 RPM
Rapid Traverse Rate................2,362 IPM
Number of Tools....................134 ATC
Tool to Tool.......................0.9 secs
Chip to Chip.......................2.2 secs
Maximum Tool Length................16.9"
Maximum Tool Diameter..............6.7"
Maximum Tool Weight................26.4 lbs
Machine Weight.....................20,000 LBS
Professional 5 Control (Fanuc)
14,000 RPM, CAT-40 Spindle
Through Spindle Coolant
Full 4th Axis

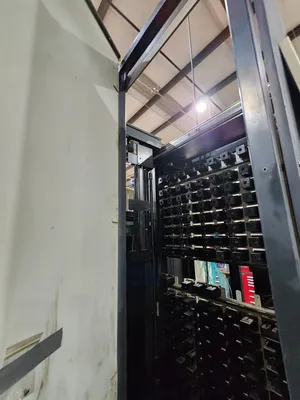

134 Station ATC
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
