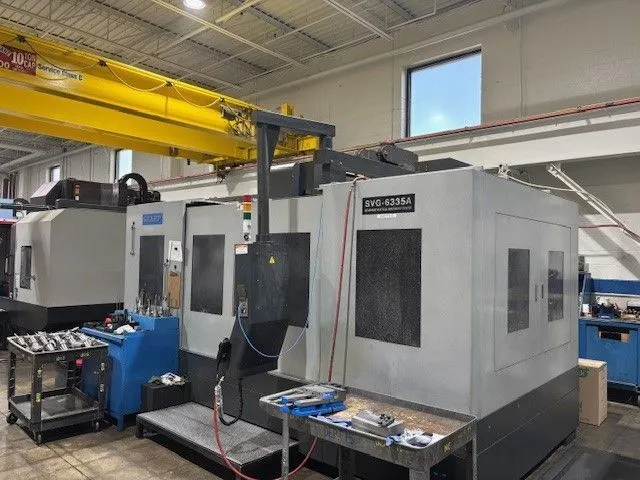

Sharp SVG-6335A 50 Taper Vertical Machining Center
Have one to sell?
ConditionUsed
1 available
2013 Sharp SVG-6335A 50 Taper Vertical Machining Center with Fanuc Oi-MD Control, 8,000 RPM, CAT-50 Spindle, 2-Speed Gear Box, 40 ATC, and Chip Conveyor
Table Size....................71" x 37"
Max Table Load................5,500 LBS
Spindle Nose to Table.........7.87" – 35.4"
Spindle Center to Column......34.4"
X Axis Travel.................63"
Y Axis Travel.................34.6"
Z Axis Travel.................27.6"
Spindle Motor.................35 HP
Spindle Taper.................CAT-50
Spindle Range.................8,000 RPM
Rapid Traverse (X,Y)..........787 IPM
Rapid Traverse (Z)............590 IPM
Number of Tools...............40 ATC
Machine Weight................34,200 LBS
Fanuc Oi-MD Control
8,000 RPM, CAT-50 Spindle
2-Speed Gear Box
40 Position Tool Changer
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
2013 Sharp SVG-6335A 50 Taper Vertical Machining Center with Fanuc Oi-MD Control, 8,000 RPM, CAT-50 Spindle, 2-Speed Gear Box, 40 ATC, and Chip Conveyor
Imperial
| X | 63" |
| Y | 34.6" |
| Z | 27.6" |
| Power | 35 hp |
| RPM | 8,000 RPM |
| # ATC | 40 |
| Taper | CAT-50 |
| Table-W | 37" |
| Table-L | 71" |
| # Axis | 3 |
| Control | CNC (Fanuc Oi-MD) |
| Weight | 32,200 LBS |
Table Size....................71" x 37"
Max Table Load................5,500 LBS
Spindle Nose to Table.........7.87" – 35.4"
Spindle Center to Column......34.4"
X Axis Travel.................63"
Y Axis Travel.................34.6"
Z Axis Travel.................27.6"
Spindle Motor.................35 HP
Spindle Taper.................CAT-50
Spindle Range.................8,000 RPM
Rapid Traverse (X,Y)..........787 IPM
Rapid Traverse (Z)............590 IPM
Number of Tools...............40 ATC
Machine Weight................34,200 LBS
Fanuc Oi-MD Control
8,000 RPM, CAT-50 Spindle
2-Speed Gear Box
40 Position Tool Changer
Chip Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
