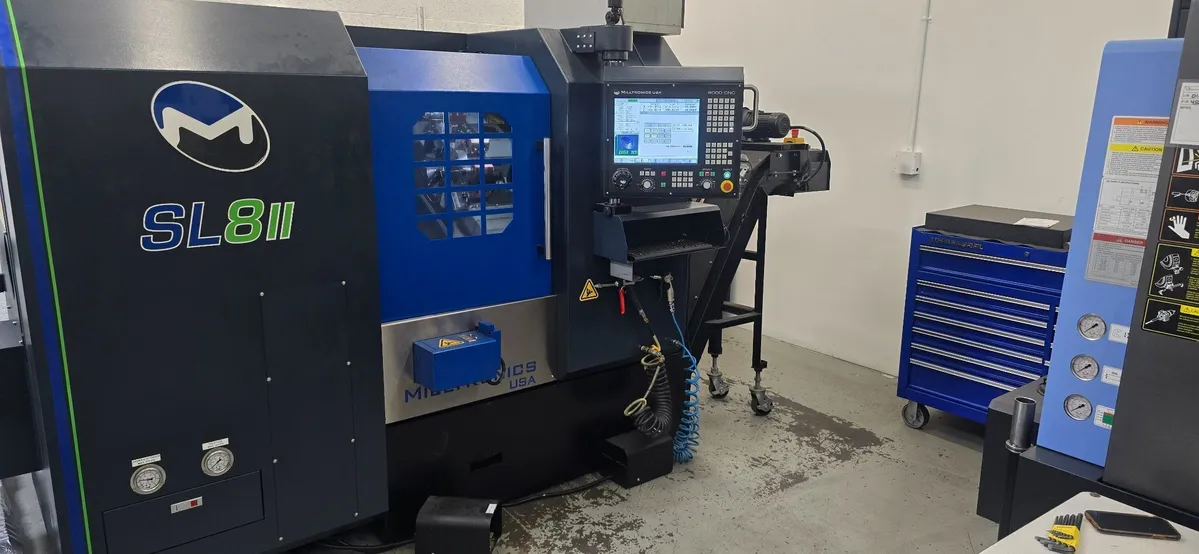

Milltronics SL8-II CNC Turning Center

Swing Over Bed.....................21.7"
Swing Over Cross...................11.8"
Max. Turning Diameter..............14"
Max. Turning Length................21"
X-Axis Travel......................8"
Z-Axis Travel......................21"
Spindle Motor......................30 HP
Spindle Nose.......................A2-6
Draw Tube Diameter.................2.54"
Spindle Speed......................4,000 RPM
Spindle Torque.....................161 ft-lbs
Rapid Traverse Rate................1182 IPM
Tool Capacity......................12
Tooling Size.......................1"
Boring Bar Capacity................1.5"
Tailstock Quill Travel.............3.46"
Tailstock Quill Diameter...........2.28"
Tailstock Quill Taper..............MT4
Electrics..........................208-240 Volts / 3 Phase
Operating Footprint................143" x 99" x 84"
Machine Weight.....................8,885 LBS
