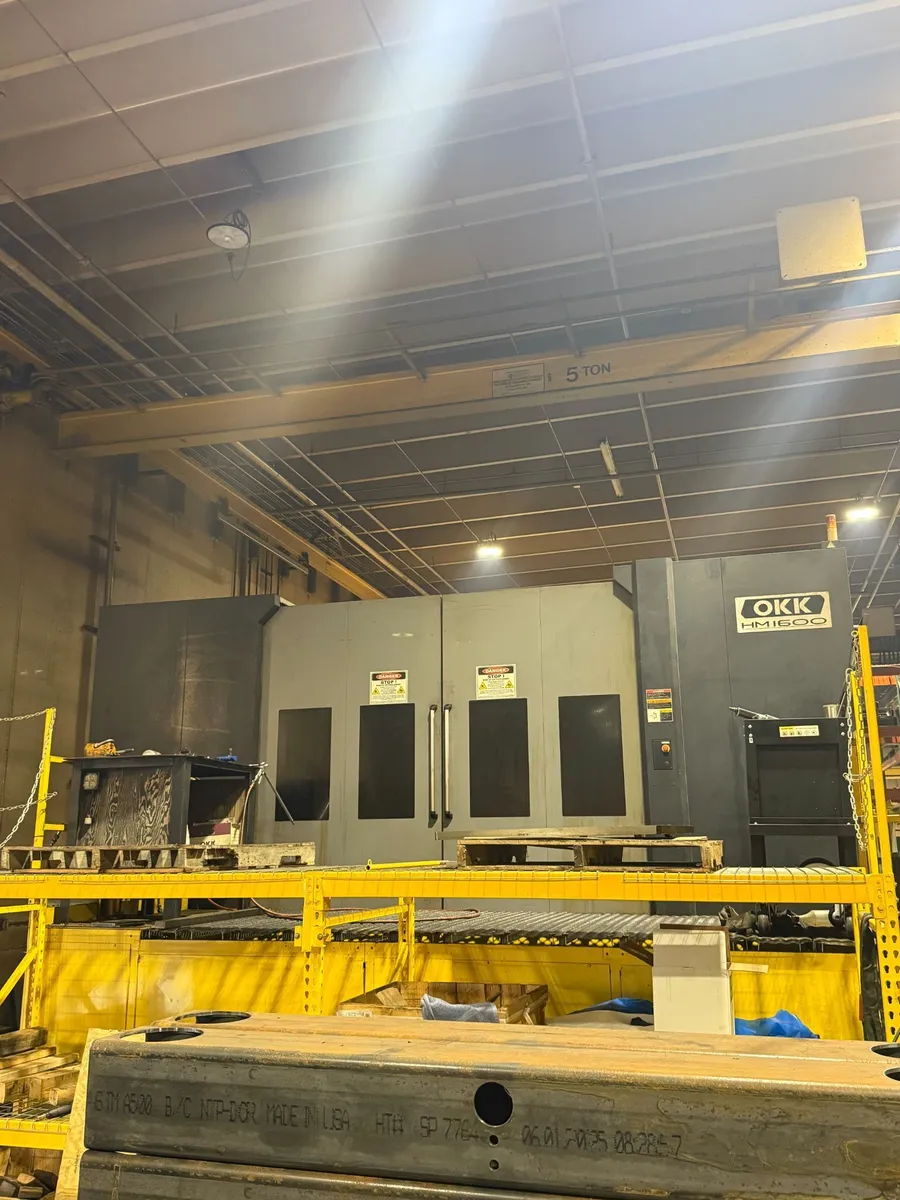

OKK HM-1600 CNC Horizontal Machining Center
Have one to sell?
ConditionUsed
1 available
2011 OKK HM-1600 CNC Horizontal Machining Center with Fanuc 31iA CNC Control, 1 Pallet, Full B-Axis, 4,000 RPM, CAT-50 Big Plus Spindle, 60 ATC, 1,000 PSI Through Spindle Coolant, Probe, and More.
Pallet Size..............................62.99" x 49.21"
Number Of Pallets........................1
Pallet Weight Capacity...................17,621 Lbs.
Pallet Surface to Spindle Center.........3.94" ~ 68.90"
Pallet Center To Spindle Gage Line.......9.84" ~ 78.74"
Workpiece Dimensions.....................98.43" D x 72.83" H
X-Axis Travel............................94.49"
Y-Axis Travel............................64.96"
Z-Axis Travel............................68.90"
B-Axis Travel............................0.001 Degrees
W-Axis Travel............................11.8"
Rapid Traverse Rates X, Y, Z.............1653, 1653, 1653 IPM
Rapid Traverse Rate B Axis...............0
Cutting Feed Rate........................787 IPM
Spindle Speed............................4,000 RPM
Spindle Taper............................CAT-50 BIG PLUS
Number Of Ranges.........................3
Main Motor...............................25 HP
Automatic Tool Changer...................60 ATC
Tool Diameter............................4.53" / 11.81"
Tool Length..............................23.62"
Tool Weight..............................66.1 Lbs.
Tool Change Time.........................2.5 Secs.
Machine Weight...........................88,105 Lbs.
BUILT IN ROTARY TABLE
COOLANT THRU SPINDLE 1000PSI
FANUC NC OPTION PACKAGE
SPINDLE AIR BLOW
OIL SKIMMER
RENISHAW RMP600 SPINDLE PROBE
MODULE AIR MIST COLLECTOR
BAR SPINDLE EXTENSION TRAVEL - W AXIS
M- CODES 8 SETS
5TH AXIS DRIVE AND TSUDAKOMA RTV - 504 CA ROTARY TABLE 20 ROTARY TABLE W/6" HOLE
CHILLED BALL SCREWS
WORK PLATFORM
FANUC 31I-A5 CNC 5-AXIS CONTROL
CAMERA SYSTEM
LIFT UP CHIP CONVEYOR
4000 RPM BIG PLUS SPINDLE
DUAL Y AND Z AXIS BALL SCREWS
4.33" W AXIS QUILL DIAMETER WITH 11.8" QUILL TRAVLE
TWIN SCREW TYPE CHIP AUGERS
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
