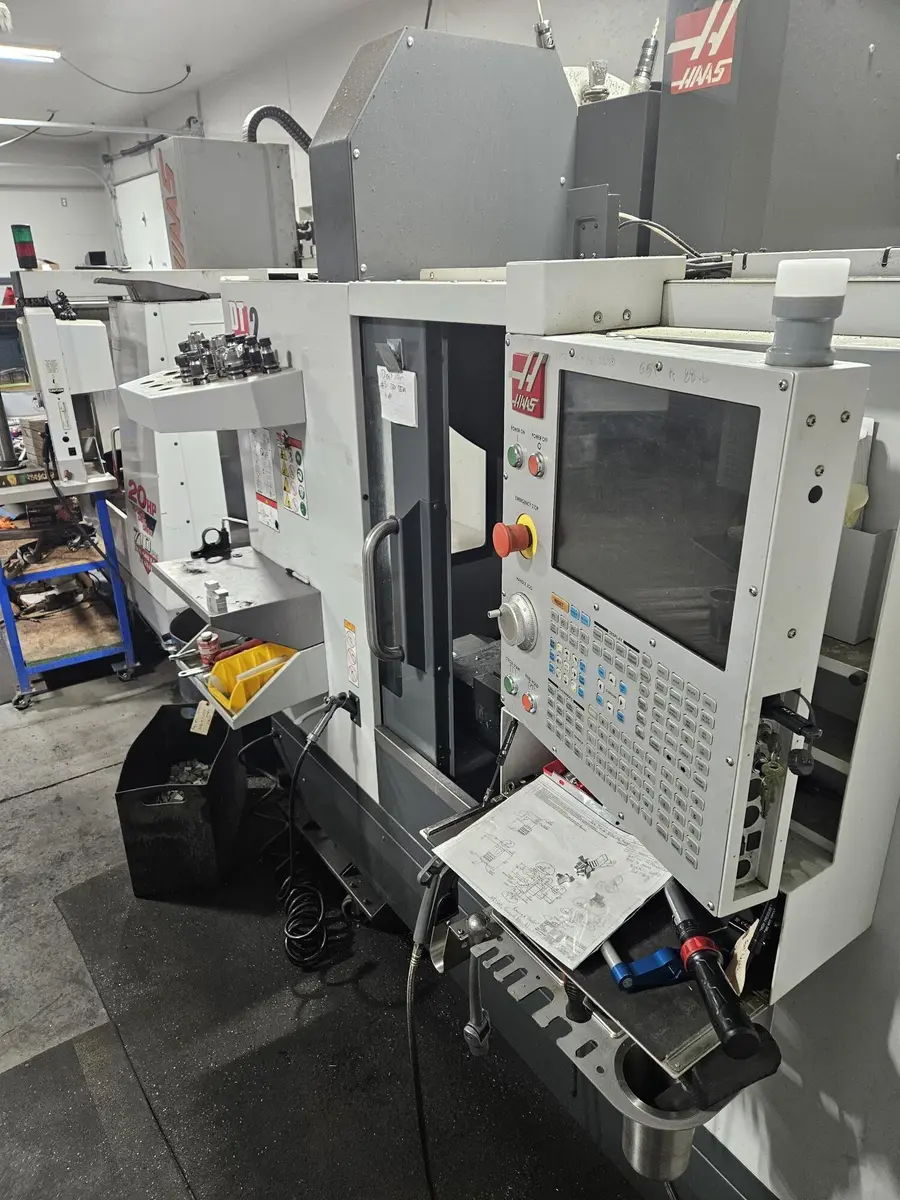

Haas DT-2 Vertical Machining & Drill & Tap Center

Table Size.................34" x 15"
Max Table Load.............250 LBS
X-Axis Travel..............28"
Y-Axis Travel..............16"
Z-Axis Travel..............15.5"
Spindle Taper..............BT-30
Spindle Motor..............15 HP
Spindle Speed..............15,000 RPM
Rapids All Axis............2,400 IPM
Max Cutting................1,200 IPM
Max Torque.................16 ft-lb @ 2800 RPM
Tool Changer...............20 ATC
Max Tapping Speed..........5000 RPM
Max Tap Size (aluminum)....1/2"–13"
Chip to Chip...............1.8 Seconds
Dimensions.................107" x 82" x 98"
Weight.....................5,400 LBS
