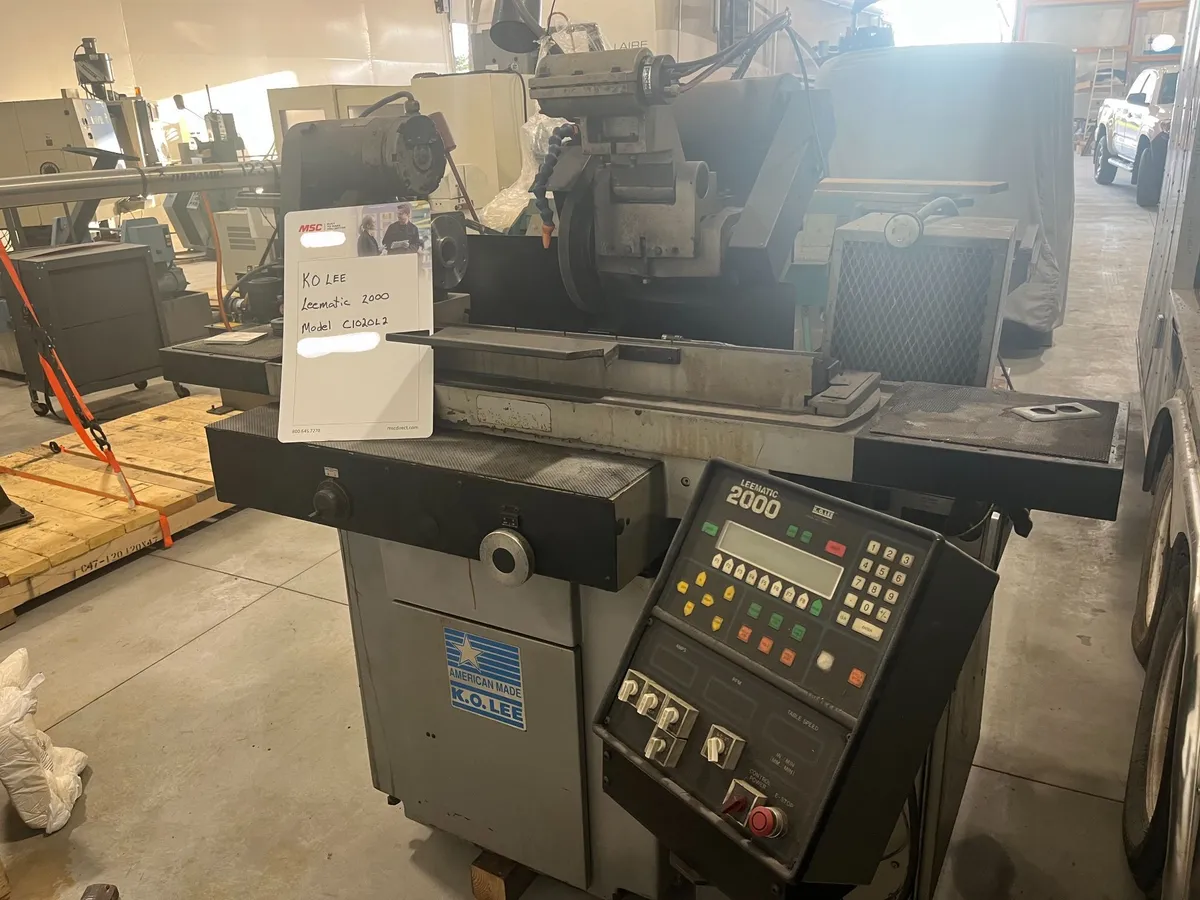

KO Lee C1020L2 Universal Cylindrical Grinder

SWING ........................................... 10"
DISTANCE BETWEEN CENTERS ........................ 20"
TABLE SWIVELS ............................ +/- 10 DEG
MAXIMUM LONGITUDINAL TABLE TRAVEL ............... 24"
FEED RATE .......................... 0.1" TO 150" IPM
SWIVEL ...................................... 135 DEG
SPINDLE SPEEDS, INF. VARIABLE FROM .... 35 TO 700 RPM
HOLE THRU SPINDLE ........................... 1.3" ID
CENTER TAPER .................................. #5 MT
FEED RATE ........................... 0.1" TO 75" IPM
MAXIMUM TRAVEL ............................... 7-1/2"
HANDWHEEL INDEX GRADUATED ................... 0.0001"
CONTROL RESOLUTION ......................... 0.00002"
REPEATABILITY ...........................=/- 0.0001"
GRINDING WHEEL SIZE .......... 14" X 1-1/2" X 5" BORE
MOTOR .......................................... 5 HP
APPROX. MACHINE WEIGHT ...................... 3,450 LBS
APPROX. FLOOR SPACE REQUIRED FOR OPERATION .. 96" X 75"
