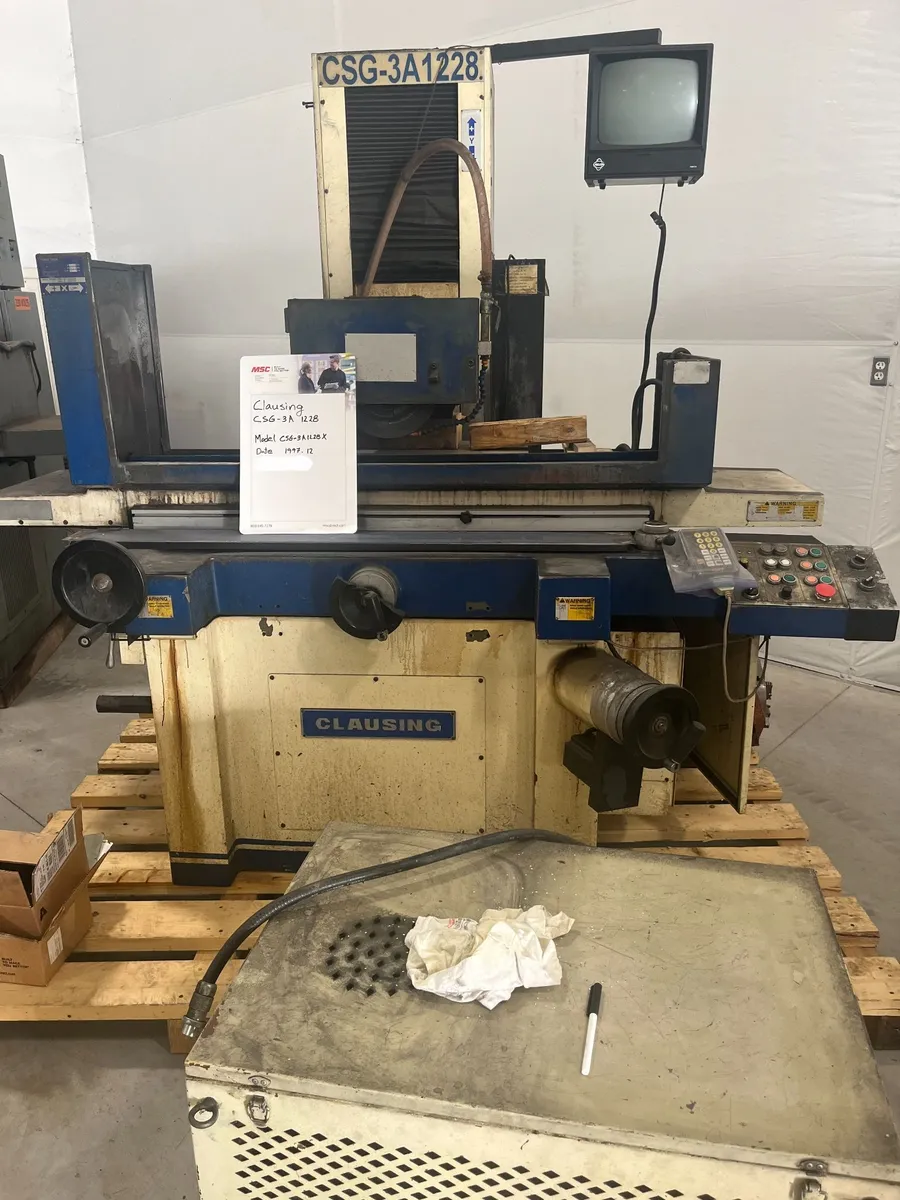

1997 Clausing CSG-3A1228X Surface Grinder
Table size................................................12" x 28"
Max. grinding length (longitudinal).......................28"
Max. grinding width (crosswise)...........................13"
Table surface to spindle centerline:
Standard..................................................24.75"
High Column Option........................................28-5/16"
Standard magnetic chuck size..............................11.75" x 27.5"
Longitudinal movement of table:
Max. travel (hydraulic)...................................30"
Max. travel (manual)......................................32-9/16"
Table speed infinitely variable...........................196-984 in/min
Cross transverse travel:
Max. auto transverse travel...............................13.75"
Max. manual transverse travel.............................15"
Handwheel per revolution..................................0.2"
Handwheel per graduation..................................0.0001"
Grinding spindle drive:
Speed.....................................................1750 rpm
Power rating..............................................7.5 Hp
Standard grinding wheel...................................14" x 2" x 5"
Power rating:
Hydraulic motor...........................................3 Hp x 6P
Measurements & weights
Floor space (total space required) (L x W x H)............116" x 78" x 81"
Gross.....................................................7,744 lbs.
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
