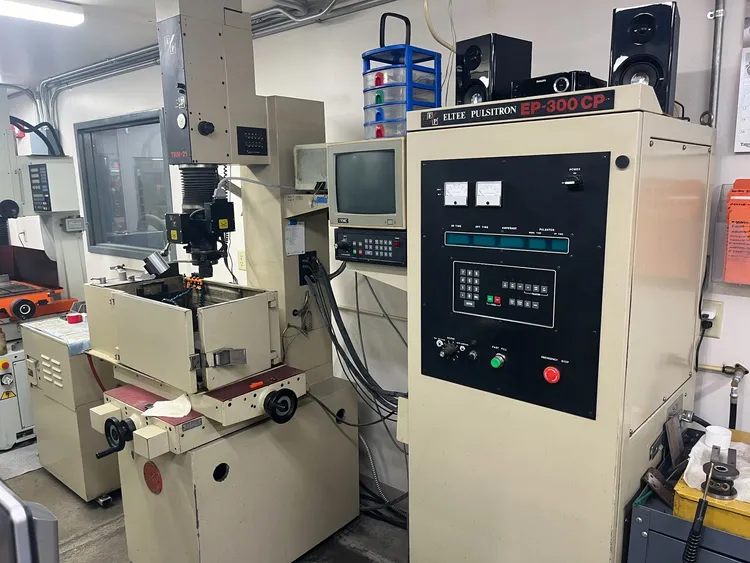

ELTEE PULSITRON TRM 21 SINKER EDM

TABLE SIZE.................................. 16" X 11"
MAXIMUM TABLE LOAD.......................... 300 LBS
WORK TANK................................... 19.75" X 14.75" X 12"
DIELECTRIC TANK SIZE........................ 5 GALS.
X-AXIS TRAVEL............................... 8"
Y-AXIS TRAVEL............................... 6"
Z-AXIS TRAVEL............................... 10.5"
MAXIMUM QUILL CLEARANCE..................... 17.375"
MINIMUM QUILL CLEARANCE..................... 5.375"
MAXIMUM LOAD QUILL (ELECTRODE).............. 100 LBS
MAXIMUM LOAD QUILL WITH MAGNETIC TOOLING.... 22 LBS
