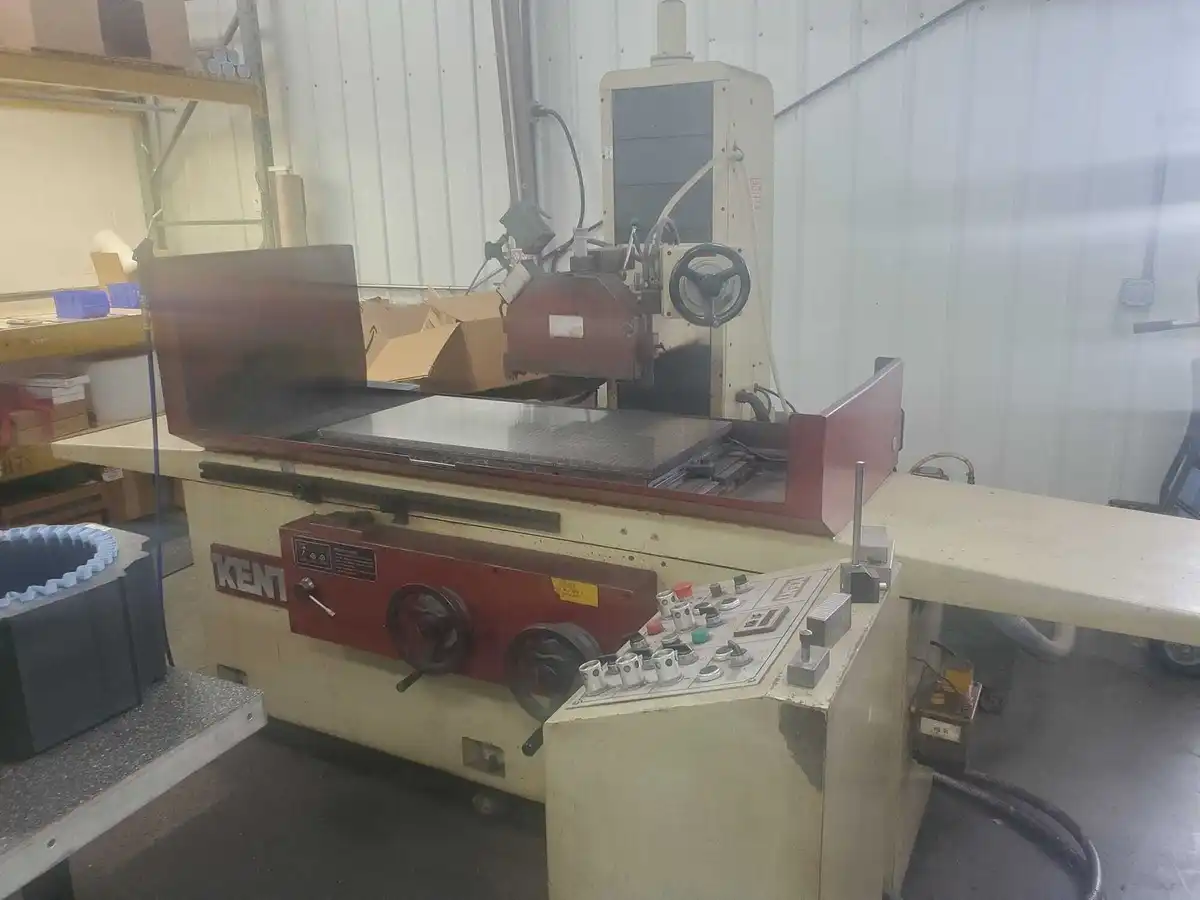

Kent KGS-510AHD 40" x 20" Surface Grinder

Chuck Size..............................20" x 40"
Spindle to Table Top....................23"
Max. Longitudinal Travel................44-1/2"
Max. Cross Travel.......................21-5/8"
Hydraulic Feed..........................23 - 82 FPM
Handfeed per Revolution.................0.02"
Continuous Traverse Feed................0-59 IPM
Grad. of Handwheel......................0.00008"
Rapid Feed..............................11 IPM
Spindle Drive Motor.....................7.5 HP
Wheel Diameter..........................14"
Wheel Width.............................1-1/2"
Wheel Bore..............................5"
Hydraulic Motor.........................3 HP
Cross Feed Motor........................4/5 HP
Weight (approx.)........................11,000 LBS

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
