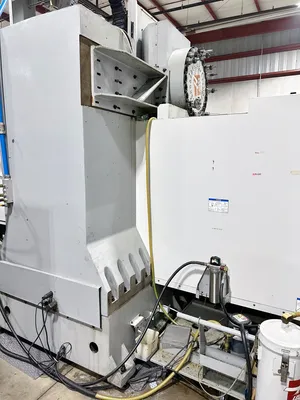

Haas VF-6/40 4-Axis Vertical Machining Center
Have one to sell?
ConditionUsed
1 available
2008 Haas VF-6/40 4-Axis Vertical Machining Center with HRT-310 4th Axis, 300 PSI Through Spindle Coolant, Renishaw Probing, 24 Side Mount ATC, and More.
Table Size.........................64" x 28"
Max Weight on Table................4000 lbs
Spindle Nose to Table..............4" – 34"
X-Axis Travel......................64.0"
Y-Axis Travel......................32.0"
Z-Axis Travel......................30.0"
Spindle Motor......................20 HP
Spindle Taper......................CAT-40
Spindle Speed......................7,500 RPM
Number of Tools....................24 ATC
Rapid Traverse Rates X, Y / Z......540 / 600 IPM
Machine Dimensions.................156" x 123" x 129"
Machine Weight.....................21,000 lbs
HAAS HRT310 (12") 4TH AXIS ROTARY TABLE
4TH AXIS DRIVE & WIRING
THROUGH-SPINDLE COOLANT (300 PSI)
RENISHAW PROBING SYSTEM
SIDE-MOUNT TOOL CHANGER (24 ATC)
AUXILIARY COOLANT FILTRATION SYSTEM
PROGRAMMABLE COOLANT
REMOTE JOG HANDLE
CHIP AUGER
COORDINATE ROTATION & SCALING
SPINDLE ORIENTATION
VISUAL QUICK CODE
RIGID TAPPING
MACROS
USB PORT
**MACHINE RAN 1 SHIFT/DAY**
**FULL REPLACEMENT COST, AS EQUIPPED - $190,000**
**MACHINE CUT PRIMARILY ALUMINUM & SOME STAINLESS**
**IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
