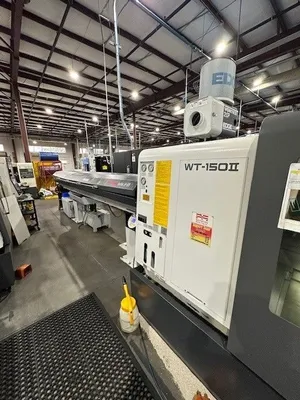

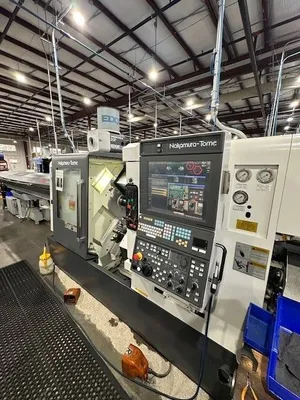

2016 Nakamura-Tome WT-150-II Multi-Axis CNC Turning Center With Fanuc 31i-B Control, Dual Turrets, Live Tooling, Latham High Pressure Coolant, and LNS Chip Conveyor.
Max. Turning Diameter........................7.5"
Standard Turning Diameter....................6.7"
Distance Between Centers max.................29.6", min. 7.9"
Max. Turning Length..........................20.3"
Bar Capacity.................................2
Slide Travel X1 / X2.........................6.6"
Slide Travel Z1 / Z2.........................20.3"
Slide Travel Y...............................+/-1.4"
Slide Travel (B-axis)........................23.7"
Rapid Feed X1 / X2...........................630 IPM
Rapid Feed Z1 / Z2...........................1575 IPM
Rapid Feed (B-axis)..........................1575 IPM
Rapid Feed Y-Axis............................236 IPM
Spindle Speed................................5000 RPM
Spindle Nose.................................A2-5
Hole Through Spindle.........................2.5"
Hole Through Draw Tube.......................2"
C-Axis Least Input Increment degrees.........0.001
C-Axis Least Command Increment degrees.......0.001
C-Axis Rapid Index Speed.....................600 RPM
C-Axis Cutting Feed Rate.....................1~4800 deg/min
Number of Tool Stations......................24
Number of Indexed Positions..................48
Tool Size Square / Round.....................1" / 1.3"
Machine Weight...............................21,000 LBS
Fanuc 31i-B CNC Control
Dual Turrets
Live Tooling
Latham High Pressure Coolant
LNS Turbo Conveyor
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
