Mitsubishi FX-10K Wire EDM
Have one to sell?
ConditionUsed
1 available

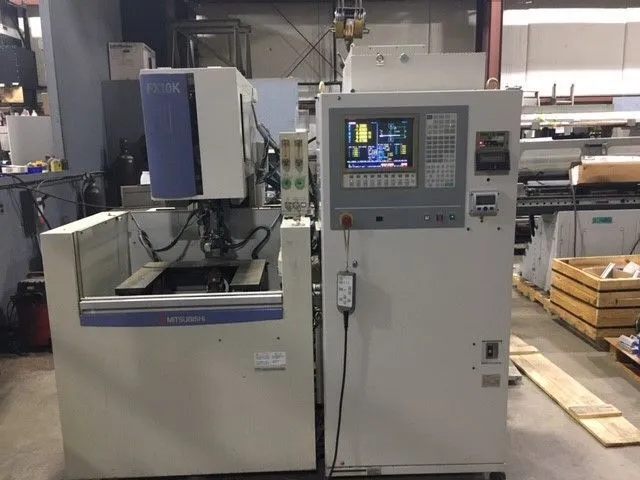

Mitsubishi FX-10K Wire EDM with Auto Threading
Table Size..................24.80″ x 20.86″
Max Workpiece Size..........31.49″ x 22.63″ x 8.66″
Max Workpiece Weight........1,168 lbs
X-Axis Travel...............13.77″
Y-Axis Travel...............9.84″
Z-Axis Travel...............8.66″
Taper Capacity..............15 degrees +/- in 4″
Wire Diameter Capability....0.004″ – 0.012″
Included Wire Guides........0.010″ and 0.008” Dia
Max Amperage................40 Amps
Overall Dimensions..........92″ x 84″ x 75″
Machine Weight..............4,070 lbs
Mitsubishi CNC Control
Remote Pendant
Submerged Cutting System
Automatic Wire Threader
Dielectric System
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
