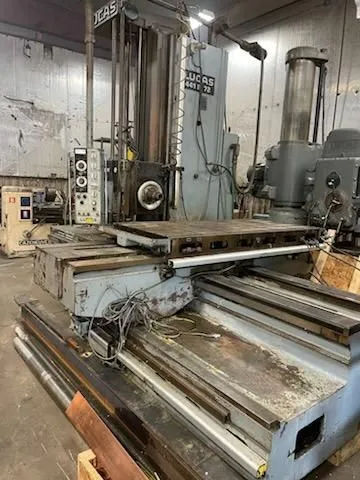

Lucas Model 441B-72 4" Table Type Horizontal Boring Mill

TABLE SIZE.........................36" X 72"
TABLE CAPACITY.....................30,000 LBS
X-AXIS TRAVEL......................72"
Y-AXIS TRAVEL......................60"
Z-AXIS TRAVEL......................52"
SPINDLE TRAVEL.....................24"
SPINDLE DIAMETER...................4"
SPINDLE MOTOR......................20 HP
TAPER..............................50 TAPER
SPINDLE SPEEDS.....................1550 RPM
SPINDLE FEEDS......................0.0001 - 0.925 IPR
APPROX. MACHINE DIMENSIONS.........109" R-L x 17' F-B x 120" H
APPROX. MACHINE WEIGHT.............38,500 LBS

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
