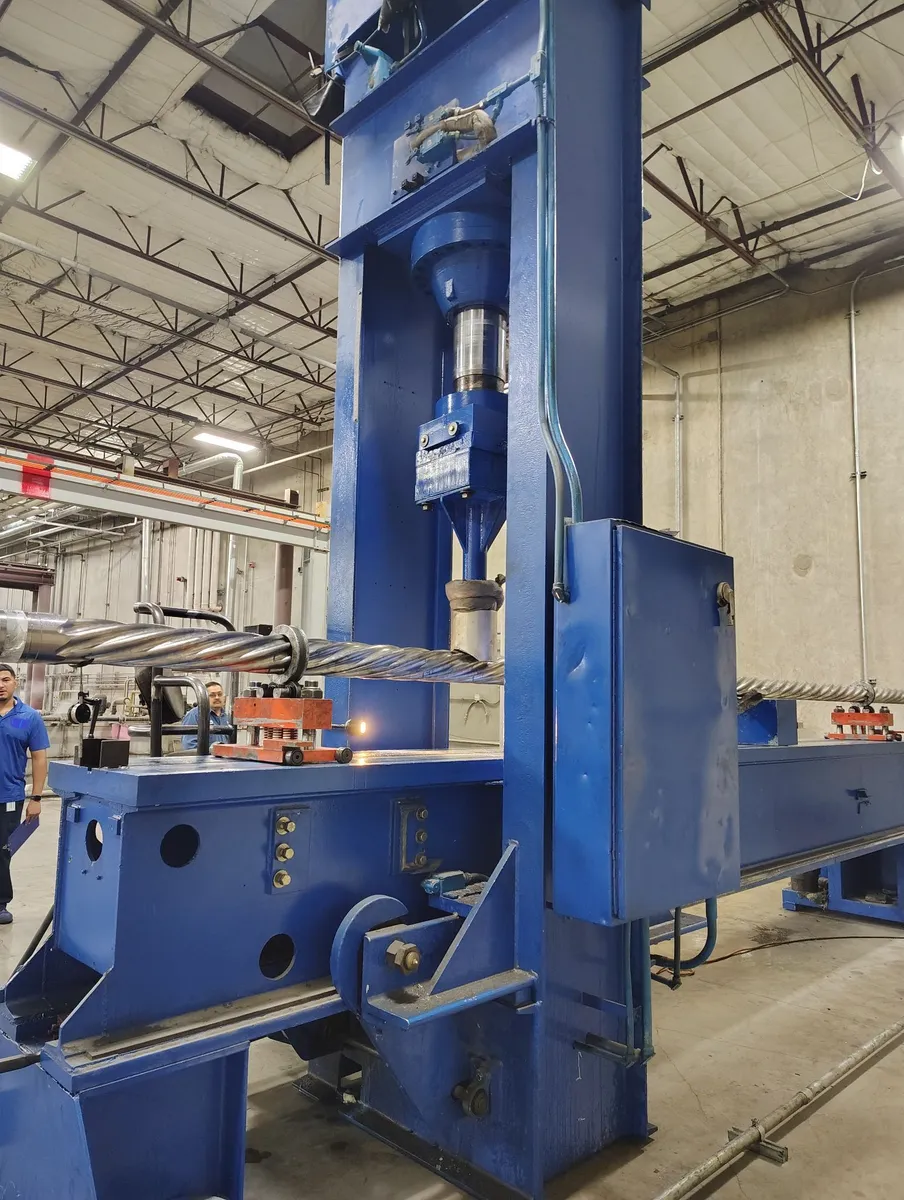

Dake Model 19-251 Narrow Movable Fram Straightening Press

Capacity........................................300 Tons
Table Size......................................24" x 360"
Daylight Opening................................60"
Maximum Work Size...............................24" OD x 20' Length, 1/2" Wall
Maximum Solid Bar...............................8" Diameter x 20'
Minimum Solid Bar...............................6" x 20'
Stroke..........................................16"
Distance Between Uprights.......................34"
Inlet Air Pressure to Cylinder..................80 PSI
Maximum Contact Force Between Roller and Work...2,500 LBS
Motor...........................................30 HP
Ram Speeds......................................1,800 RPM
Pressing Speed..................................20 IPM
Return..........................................45 IPM
Frame Traverse Speed............................28 FPM
Electrics.......................................440V/3PH/60HZ
Dimensions......................................365" x 72" x 18'
Machine Weight..................................28,000 LBS

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
