Mazak VCN-410B-II Vertical Machining Center
Have one to sell?
ConditionUsed
1 available

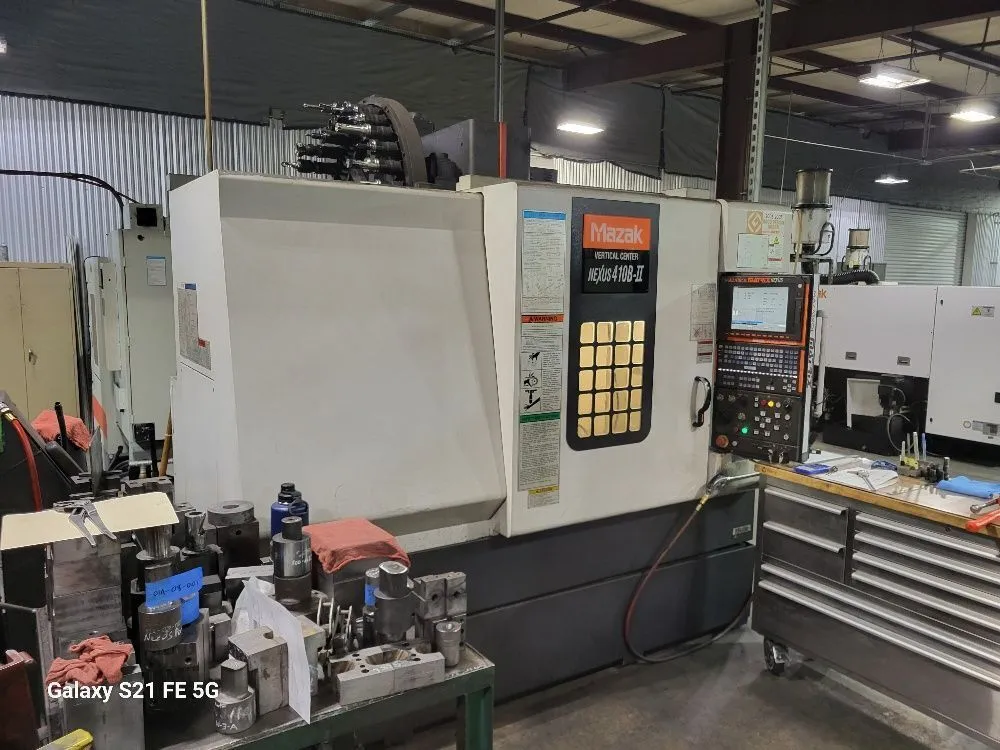

2007 Mazak VCN-410B-II Vertical Machining Center with Matrix Nexus Control, 12,000 RPM Spindle, 30 ATC, Renishaw Probe, and Low Hours.
Table Size...............43" x 16"
Max Weight on Table......1,102 lbs
Spindle Nose to Table....5.9" – 26"
X-Axis Travel............30.00"
Y-Axis Travel............16.14"
Z-Axis Travel............20.08"
Spindle Power............20 HP
Taper Size...............CAT-40
Speed Range..............12,000 RPM
Rapid Traverse Rates.....1,417 IPM
Cutting Feed Rates.......987 IPM
Tool Capacity............30 Station Side Mounted
Max Tool Weight..........17.6 lbs
Max Tool Dia.............3.25" – 4.92"
Max Tool Length..........13.78"
Tool Changing Time.......1.3 Seconds
Weight...................11,700 lbs
Mazatrol Matrix Nexus CNC Control
Renishaw Probing System
12,000 RPM, CAT-40 Spindle
30 Station ATC
Chip Conveyor
HOURS:
Power On............47,973
Auto Ope............8,041
Total Cut...........3,574
Total Time..........47,973
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
