Pratt & Whitney 1/2B-30 Dual Spindle Gun Drill
Have one to sell?
ConditionUsed
1 available
2020 Pratt & Whitney 1/2B-30 Dual Spindle Gun Drill
Drilling Capacity (Diameter)...............3/4"
Drilling Capacity (Length).................28"
Swing Over Bed (Diameter)..................1O"
Distance between Spindles..................12"
Feed per Revolution of Spindle.............0.0005 - .011"
Spindle Drive Motors.......................2 HP
Spindle Speeds (Variable, AC lnvertor).....1800 RPM
Cutting Speed..............................1.2 IPM
Pump Motors................................10 HP
Electrics..................................480V
Approximate Dimensions.....................126" x 43" x 64"
Approximate Weight.........................8,000 LBS

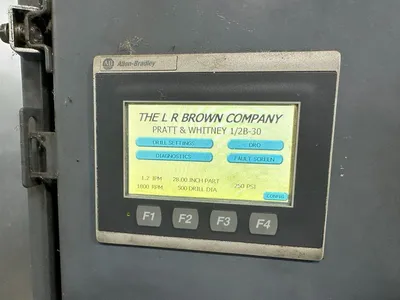

Allen Bradley Control
Stationary Tool
Rotating Work Spindles
Built in Hi-Pressure Coolant System (250 PSI) with Telescoping Oil Tubes
(2) Independent Drilling Spindles
Drill Feeding Slide
Combination Drill Guide/Work Support Carriage
Chip Chutes
**WAS RUNNING 2" BAR DIAMETER, CHUCKS CAN ACCOMODATE APPROX. 3"**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
