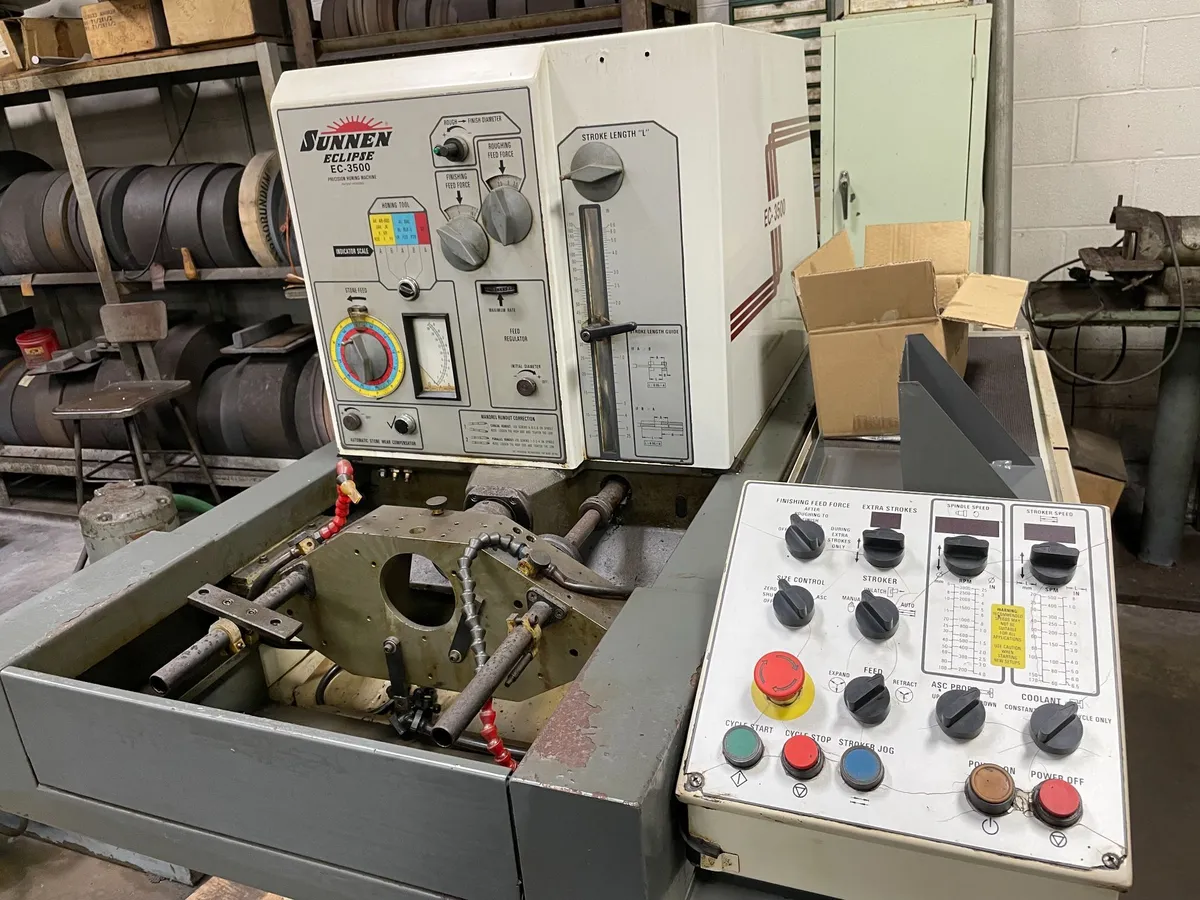

Sunnen EC-3500E "ECLIPSE"

Diameter Capacity Min, Manual Stroke.............. 0.060"
Diameter Capacity Max, Manual Stroke.............. 6.5"
Diameter Capacity Min, Power Stroke............... 0.060"
Diameter Capacity Max, Power Stroke............... 4"
Diameter Capacity Min, Auto Sizing................ 0.125"
Diameter Capacity Max, Auto Sixing................ 2"
Stroke Length, Maximum............................ 6.70"
Stroke Length, Minimum............................ 0.236"
Spindle Speeds, Range............................. 200 to 3000 RPM
Stroke Rates, Range............................... 60 to 500 SPM
Spindle Drive Motor, Horsepower................... 5.5 HP
Pump Motor, Horsepower............................ 0.25 HP
Stroker Motor, Horsepower......................... 1.5 HP
Floor Space Required, W x D....................... 3'8" x 5'4"
Overall Height.................................... 6'3"
Weight, Approximately............................. 1600 LBS
