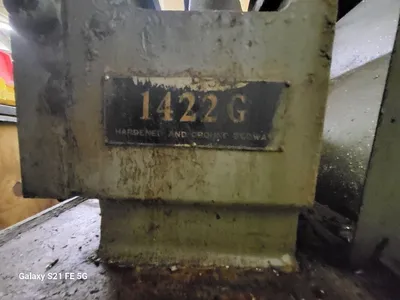

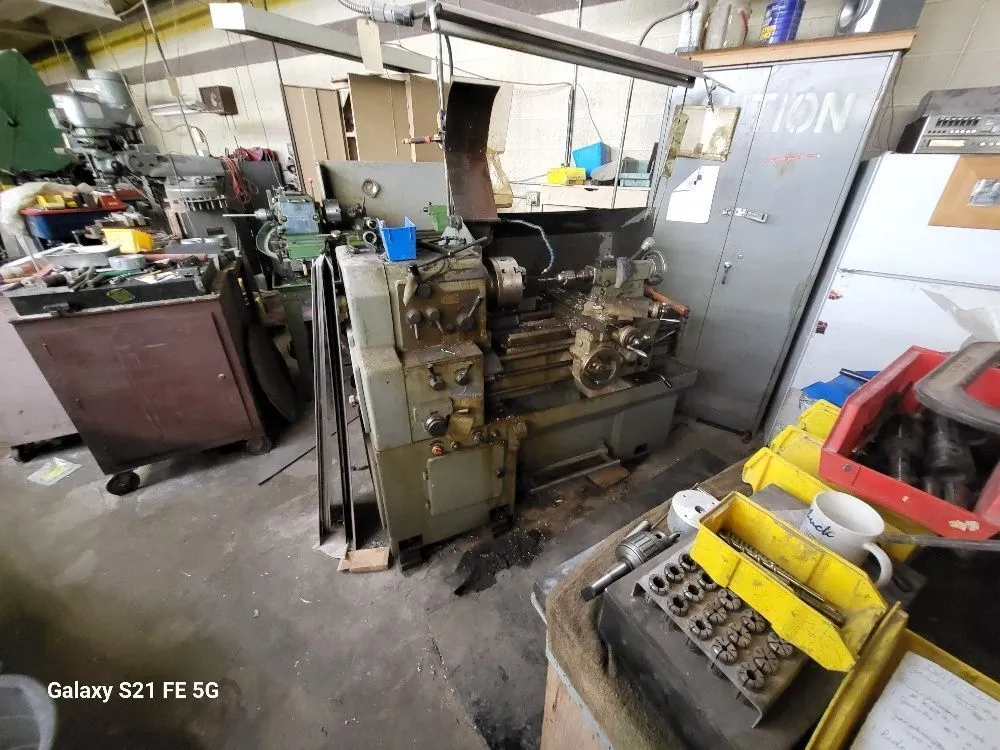

Cadillac 1422G Engine Lathe

Swing Over Bed...................14"
Swing Over Cross Slide...........8-1/4"
Distance Between Centers.........22"
Spindle Speeds (6)...............1,800 RPM
Spindle Nose.....................A1-5
Hole Through Spindle.............1-17/32"
Feeds............................0.0012"- 0.0202"
Inch.............................4-56 TPI
Metric...........................0.5-7 MM
Cross Slide Travel...............9-1/4"
Tailstock Quill Taper............#4 MT
Tailstock Quill Travel...........5-3/4"
Motor............................3 HP
Dimensions (L x W x H)...........77" x 36" x 60"
Weight...........................2,650 LBS

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
