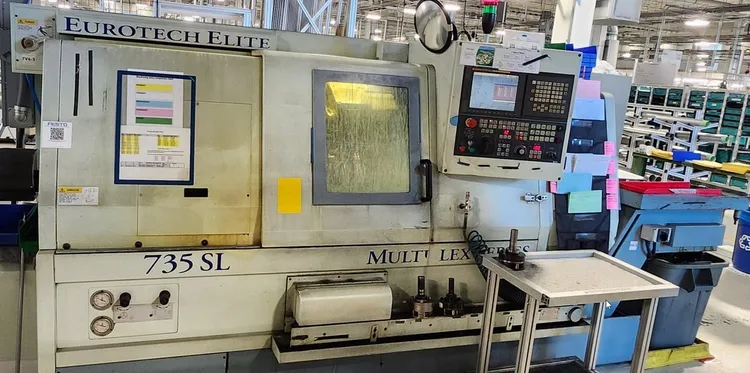

Eurotech 735 SL Dual Spindle Turning Center

Swing.....................20.47"
Max Turning Diameter......12.6"
Machining Length..........20.08"
Main Motor................35 HP
Spindle Nose..............A2-6
Bar Capacity..............2.76"
Max Speed.................4,000 RPM
Sub-Spindle Motor.........15 HP
Sub-Spindle Nose..........A2-6
Sub-Spindle Bar Capacity..1.77"
Sub-Spindle Speed.........5,000 RPM
B-Axis Travel.............18.90”
Number of Tools...........12 Station Turret
Milling Motor.............5 HP
Milling Speed.............4,000 RPM
Machine Dimensions........167" x 77.4" x 79.53"
Machine Weight............12,200 LBS
