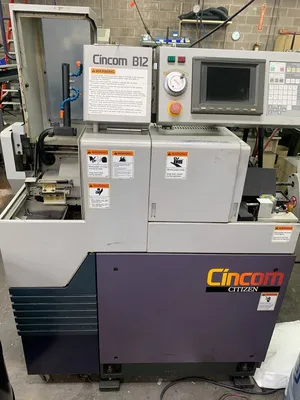

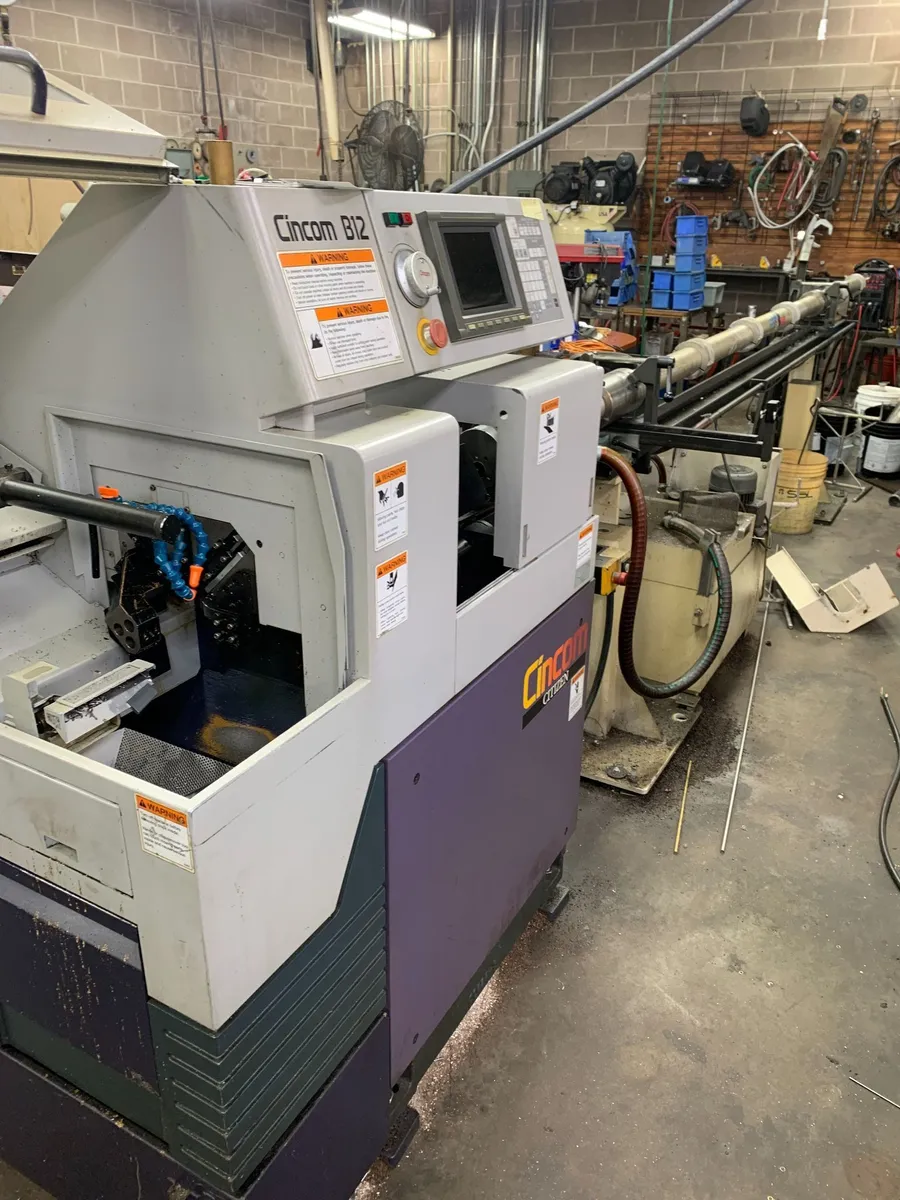

2000 Citizen B12 Swiss CNC Turning Center with Fanuc Control, and LNS Hydrobar Barfeed
Working Diameter...............1/2" (12mm)
Through Hole...................0.55" (14mm)
Machining Length...............5.31" (135mm)
Spindle Speed..................12,000 RPM
Spindle Indexing...............1 Degree
Mountable Tools................5 Turning / 3 Endworking
Turning Tools..................10 x 10 x 120 mm
Main Spindle Motor.............1.5/2.2 kw
Number of Rotary Tools.........2
Rotary Tool Speed..............4,000 RPM
Sub Spindle:
Chuck Diameter.................1/2" (12mm)
Sub Spindle Speed..............7,000 RPM
Sub Spindle Stroke.............7.8" (200 mm)
Back Machining Tools...........3
Electrics......................4 KVA
Machine Dimensions.............46" x 31" x 61"
Machine Weight.................2,600 lbs
Fanuc CNC Control
LNS Hydrobar Barfeed
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
