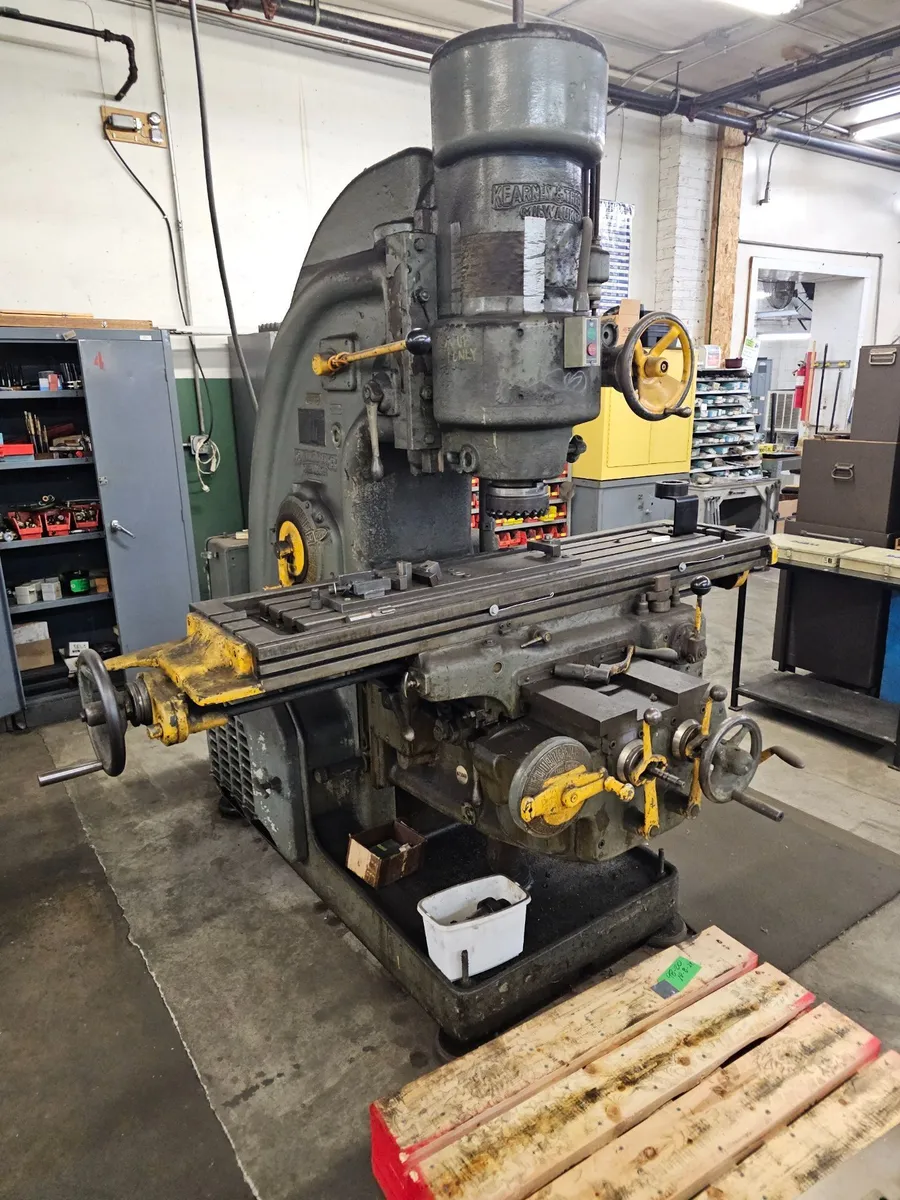

Kearney & Trecker Milwaukee 15HP-3CK

AREA OF TABLE ..................... 68-1/2" X 15-1/4"
SPINDLE SPEEDS .................... (24) 15 TO 1500 RPM
LONGITUDINAL & CROSS FEEDS ........ (32) 3/8 TO 90 IPM
VERTICAL FEEDS .................... (32) 3/16 TO 45 IPM
LONGITUDINAL TRAVEL ............... 34"
CROSS TRAVEL ...................... 16"
VERTICAL KNEE TRAVEL .............. 16"
VERTICAL HEAD TRAVEL .............. 6"
SPINDLE FACE TO TABLE ............. 0" MIN, 22-1/8" MAX
DEPTH OF THROAT ................... 18"
TAPER IN SPINDLE .................. #50 NS
RAPID TRAVERSE .................... 150 IPM
4- POSITION TURRET STOP ........... YES
SPINDLE MOTOR, HORSEPOWER ......... 15
FEED MOTOR, HORSEPOWER ............ 3

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
