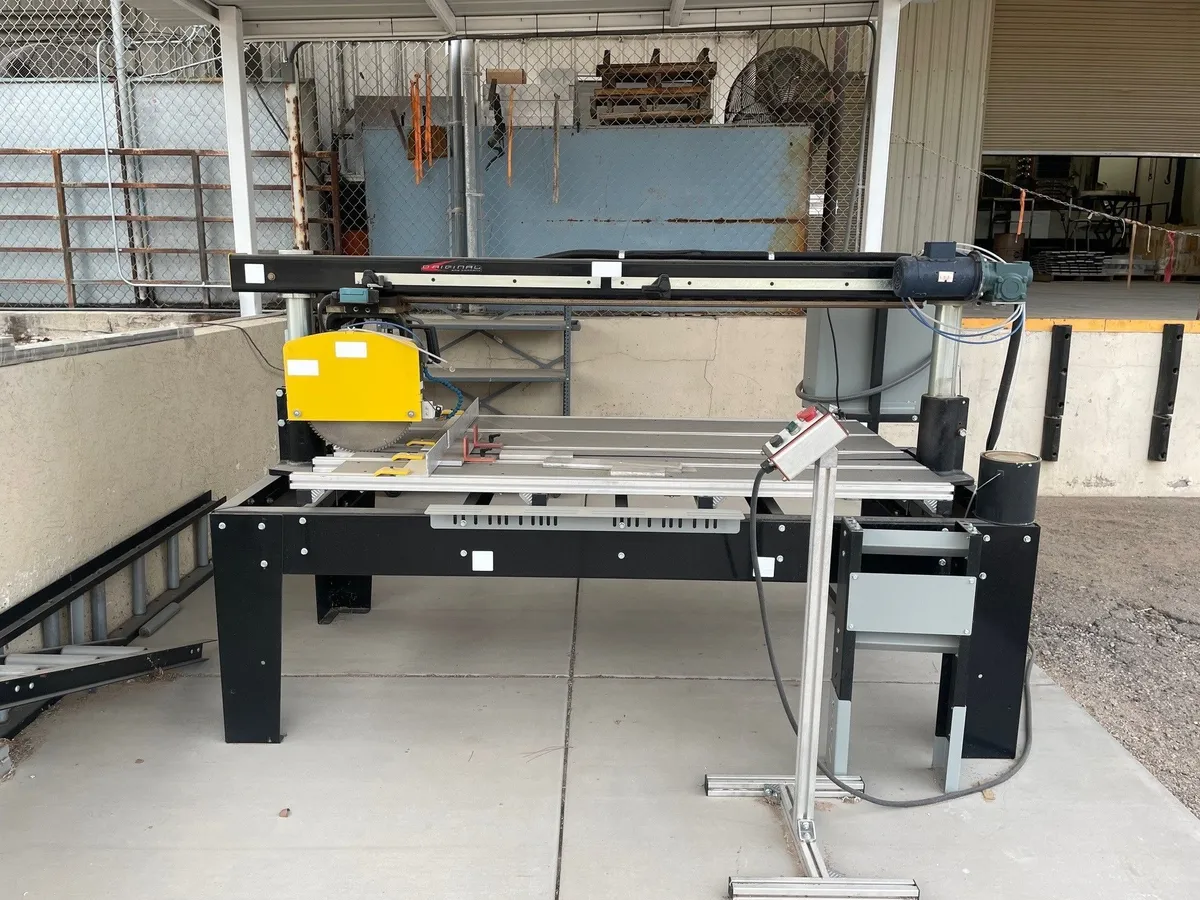

Original Saw Company 3691-01-03 - 16" Beam Saw
Have one to sell?
ConditionUsed
1 available
Original Saw Company 3691-01-03 - 16" Beam Saw with Power Feed, 460V, Spray Mist Coolant, Laser Kit, Aluminum Blade, Extension Table with 8' Rollers, Measuring System
Max. Crosscut...................64"
Depth of Cut....................5"
Depth at 45 Deg. Bevel..........2"
Cut Table Height................34-1/2"
Motor...........................7.5 HP
Electrics.......................460V/3PH/60HZ
Machine Weight..................1,500 LBS
FEATURES:
Automatic Electro-Mechanical Brake
Manual Chain Crank Crossfeed
Magnetic Starter with Low Voltage Controls
T-slot Extruded Metal Table
Manual Clamping
Extruded Aluminum Fence
Complete Upper and Lower Blade Guarding
Replaceable Track
ON/OFF Push Buttons with E-Stop
Powder Coated Steel Frame and Legs
OPTIONS:
Power Feed, Beam Saw VFD 20:1 GB ratio 460 volt operation
Spray Mist Coolant System
Laser Kit
Alum Cutting Blade
HDPE Table Insert Kit (BS)
Bracket, HD/CD series extension roller / flat table mounting
Extension Table, Roller 8' assembly (adjustable leg) 14" wide version with (8) 11.25" wide rollers set on 12" centers
Measuring System OS Series flip away arm style 8'R-L Read _ Left side mounting
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
