Niigata SPN50-HO
Have one to sell?
ConditionUsed
1 available

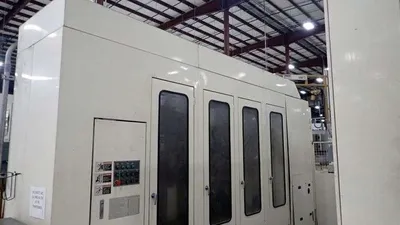

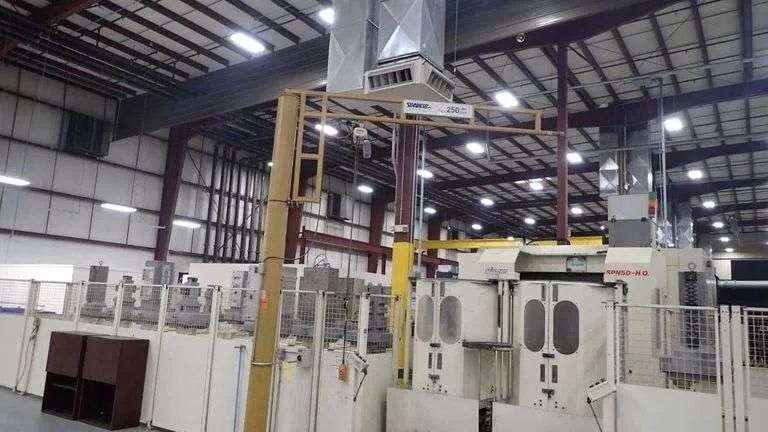

2007 Niigata SPN50-HO (4) Machine Cell with 30 Station Pallet Pool - Fanuc 16i-MB Controls, 126 ATC Each Machine, 1 Degree 4th Axis, and ChipBlaster JV10 Units.
Pallet Size.......................19.69" x 19.69"
Number of Pallets.................30
Max. Pallet Capacity..............1,320 LBS
Pallet Indexing...................1 Degree 4th Axis
Spindle Nose to Pallet Center.....5.9" - 35.4"
Spindle Center to Pallet..........3.15" - 32.7"
X-Axis Travel.....................32.49"
Y-Axis Travel.....................29.52"
Z-Axis Travel.....................32.28"
Spindle Motor.....................50 HP
Spindle Taper.....................CAT-50
Spindle Speed.....................15,000 RPM
Rapid Traverse Rates..............2,362 IPM
Cutting Feedrate..................1,575 IPM
Number of Tools...................126 ATC
Max. Tool Weight..................44 LBS
Max. Tool Length..................17.7"
Max. Tool Diameter................5.2" / 9.45" W Adjacent Open
Tool to Tool Time.................1.4 Seconds
Fanuc 16i-MB & Fanuc 16i-M CNC Control
(30) Station Pallet System with Transfer Cart and (4) Setup Stationa
15,000 RPM, CAT-50 Spindle
1 Degree 4th Axis
50 HP Motor
126 Station ATC
Thru-Spindle Coolant
1,000 PSI Chip Blaster Model JV10
Auto Crossover
Overhead Coolant
Transformer
Drag Conveyor with Mesh Covered Rotary Drum
Niigata Monitoring NM24
Program Restart
Automatic Corner
Registered Program
1 MB Part Storage
Inverse Time Feed
Optional Skip Block
High Speed Serial Bus Interface
High Spped Skip
Multi Step Skip
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
