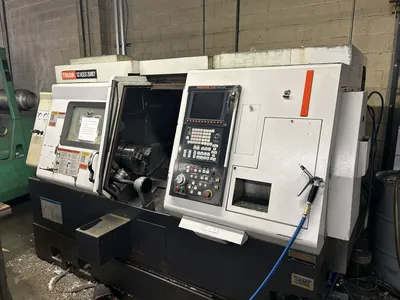

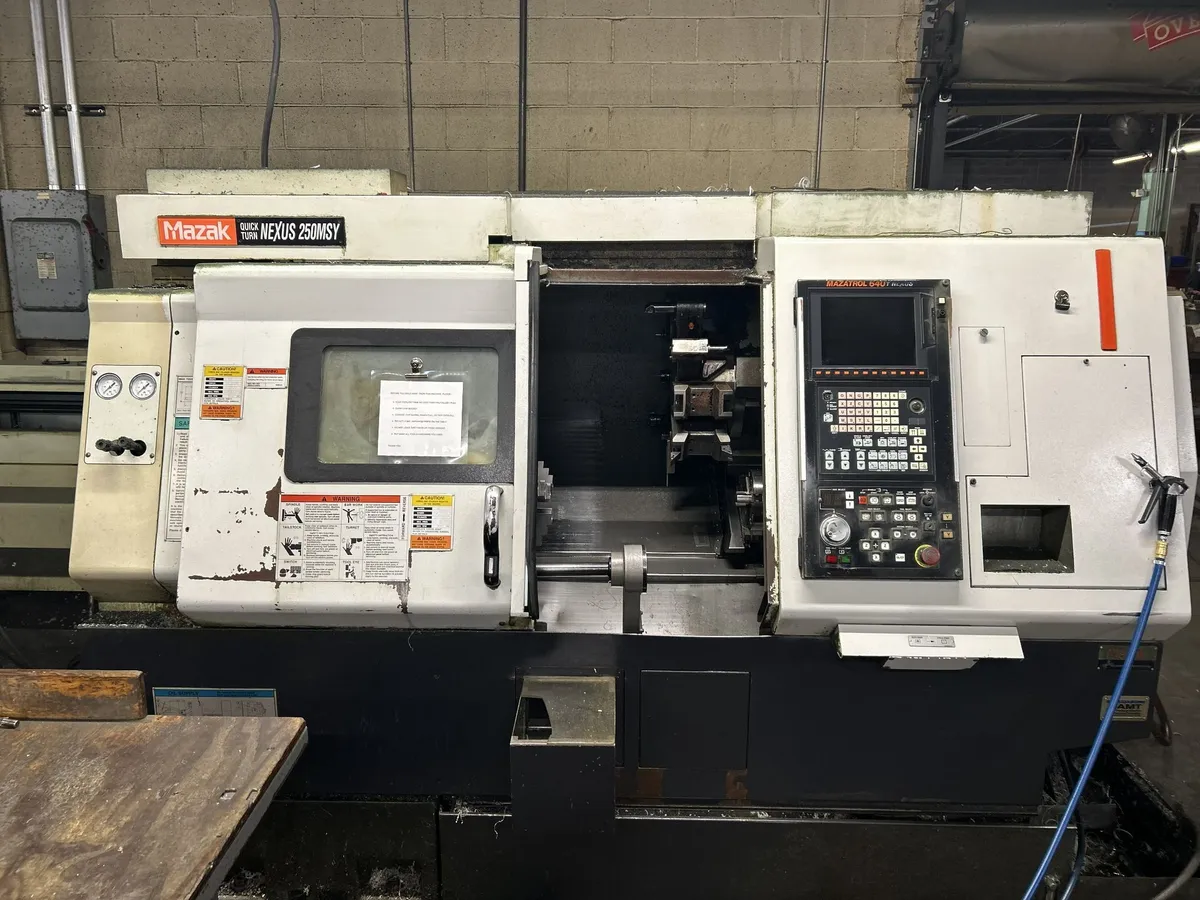

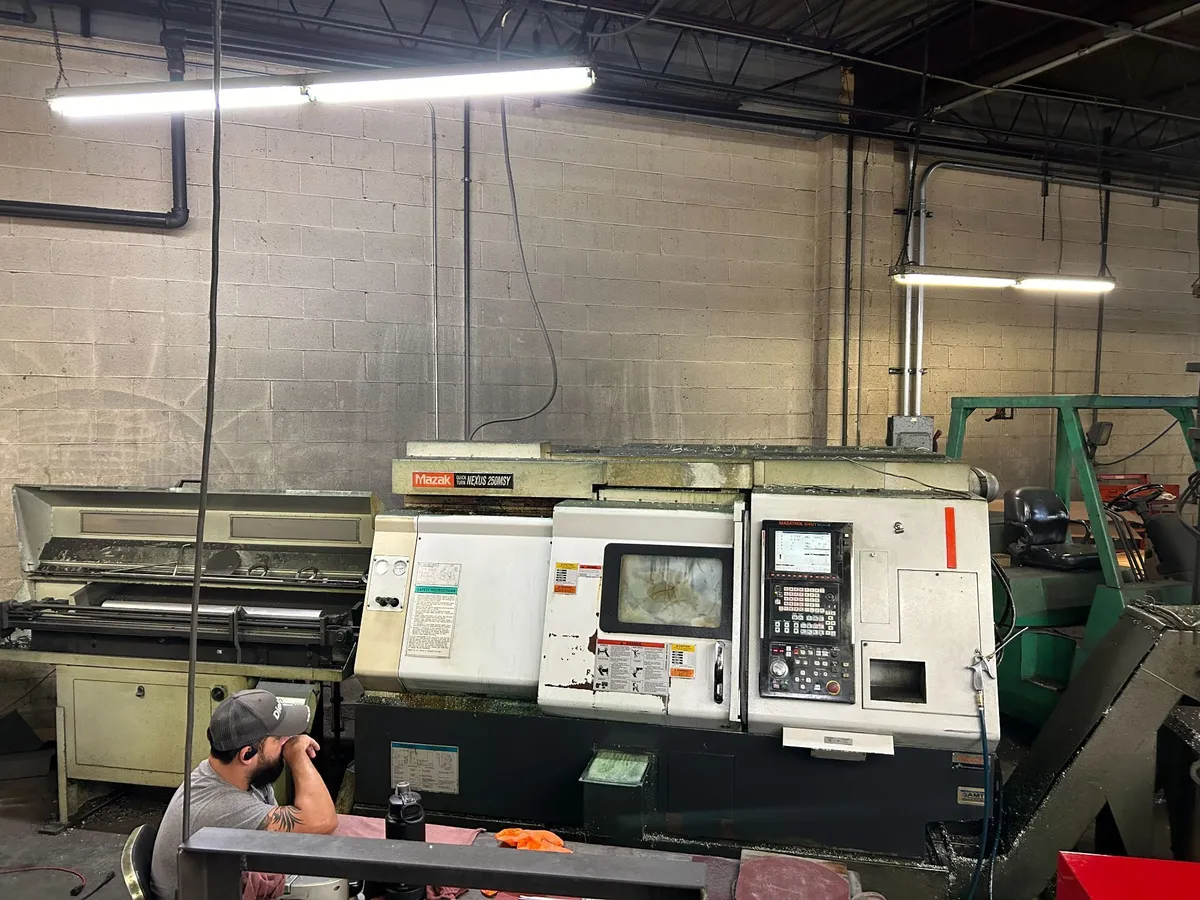

MAZAK QTN-250MSY

MAX. SWING..................................26.5"
MAX. TURNING DIA............................14.00"
SPINDLE BORE................................3.46"
MAIN SPINDLE C - AXIS..................... .001" N/C CONTOURING
SPINDLE NOSE................................A2-8"
MAX BAR CAPACITY............................3.00"
SPINDLE SPEEDS..............................4000 RPM
X - AXIS....................................9"
Z - AXIS (BETWEEN CHUCK JAWS)...............21.28"
Y - AXIS....................................+-2.00"
W - AXIS (SUB-SPINDLE)......................23.00"
MIN. SPINDLE INDEXING.................... .001 DEGREE
SUB SPINDLE CHUCK SIZE......................6"
SUB SPINDLE SPEED...........................6000 RPM
SUB SPINDLE HORSE POWER.....................10 HP
RAPID ON SUB SPINDLE........................1181 IPM
RAPID TRAVERSE X,Z..........................1181, 1299 IPM
RAPID TRAVERSE Y............................826 IPM
C-AXIS......................................400 RPM
TURRET TYPE.................................12 TRT
BORING BAR TYPE.............................1.25"
ROTARY TOOL SPEED...........................6000 RPM
ROTARY TOOL HORSEPOWER......................7.5 HP AC
MAIN MOTOR..................................35 HP AC
MACHINE WEIGHT..............................11,530 LBS.
