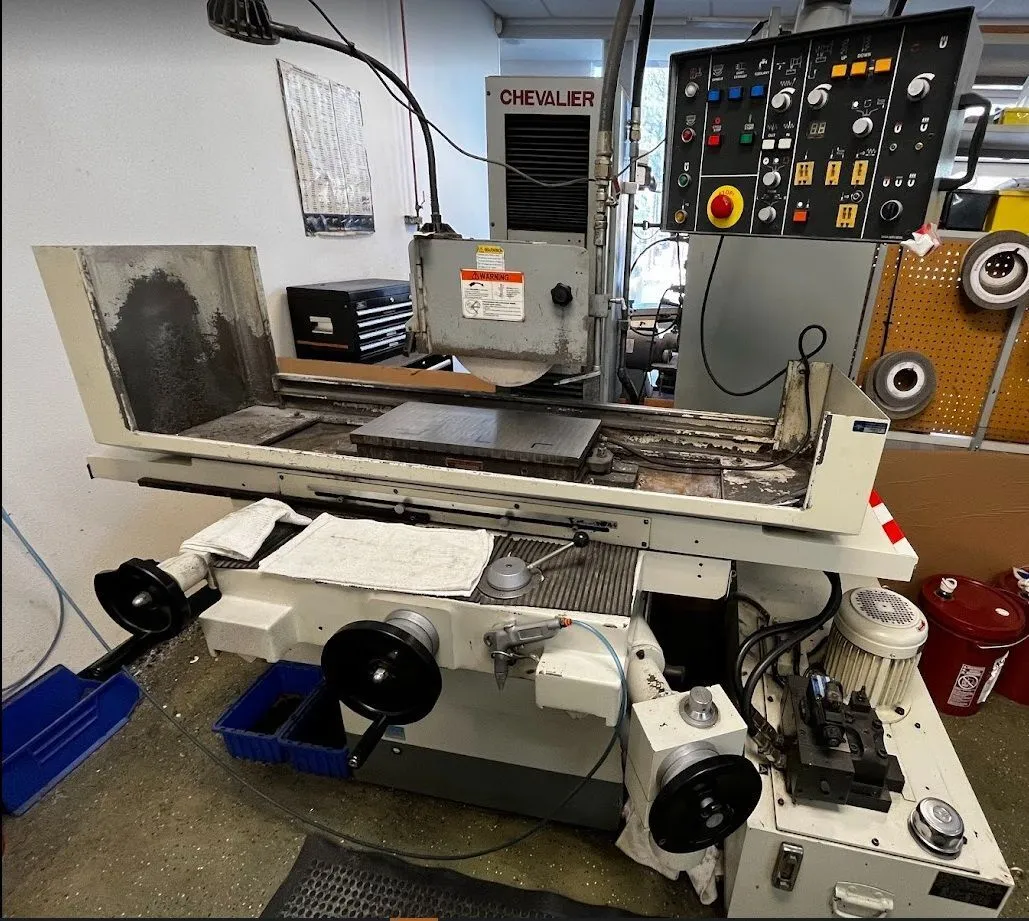

Chevalier FSG-3A1020

NOMINAL GRINDING CAPACITY ................... 10" X 20"
MAX. LONGITUDINAL TABLE TRAVEL, HYDRAULIC ... 22- 7/8"
MAX. LONGITUDINAL TABLE TRAVEL, MANUAL ...... 24- 3/8"
MAX. CROSSFEED TRAVEL, AUTOMATIC ............ 11- 7/16"
MAX. CROSSFEED TRAVEL, MANUAL ............... 11- 3/4"
DIST. FROM SPINDLE CENTER TO TABLE .......... 21- 1/2"
VARIABLE TABLE SPEED, HYDRAULIC .......... ...16' TO 82' FPM
AUTOMATIC CROSSFEED INCREMENT ............ ...0.02" TO 0.4"
POWER RAPID TRAVERSE (CROSS) ................ 48" IPM
CROSSFEED HANDWHEEL, PER GRADUATION ......... 0.001"
PER REVOLUTION .............................. 0.02"
AUTOMATIC INCREMENTAL DOWNFEED ......... .....0.0001" TO .002"
AUTO DOWNFEED DIAL PER GRADUATION ........... 0.0005"
PER REVOLUTION .............................. 0.1"
MICROFEED ................................... 0.0001"
RAPID TRAVERSE RATE ......................... 13" IPM
SPINDLE MOTOR ............................... 3 HP
MACHINE DIMENSIONS .......................... 96" x 61" x 75"
MACHINE WEIGHT .............................. 3,500 LBS
