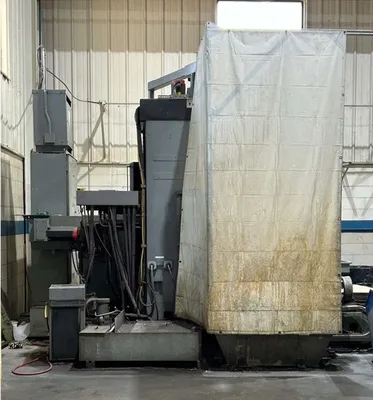

Kuraki KBT-10DX Horizontal Boring Mill

SPINDLE DIAMETER.........................3.94"
SPINDLE TAPER............................ISO NO. 50
SPINDLE SPEEDS (3 STEP GEAR CHANGE)......5 - 2000 RPM
SPINDLE HEAD VERTICAL TRAVEL (Y).........39.37"
TABLE LONGITUDINAL TRAVEL (X)............59.06"
TABLE CROSS TRAVEL (Z)...................31.50"
SPINDLE CENTER TO TABLE SURFACE..........0 - 39.37"
SPINDLE AXIAL TRAVEL (W).................19.69"
TABLE SIZE...............................37.40" X 43.31"
AUTOMATIC TABLE INDEXING.................0.001 DEGREE
FEED RATE (X, Y, Z & W)..................0.04-157.48 IPM
RAPID TRAVERSE (X, Y, & Z)...............472.44 IPM
RAPID TRAVERSE (W).......................236.22 IPM
RAPID TABLE ROTARY SPEED.................1.2 RPM
SPINDLE MOTOR AC.........................15 HP
FEED FOR X, Y, Z & W AXIS AC.............4.7 HP
TABLE ROTATION AC........................2.4 HP
HYDRAULIC PUMP MOTOR AC..................2 HP
SPINDLE LUBRICATION AC...................0.13 HP
SLIDE WAYS LUBRICATION AC................0.08 HP
SPIRAL CHIP CONVEYOR AC..................0.53 HP
ELECTRIC POWER SOURCE VOLTAGE............AC200/220V +/-10% 50/60 Hz +/- 1%
CAPACITY.................................40 KVA
MACHINE HEIGHT...........................129.92"
FLOOR SPACE..............................183.07" X 151.57"
MACHINE WEIGHT...........................25,960 lbs
