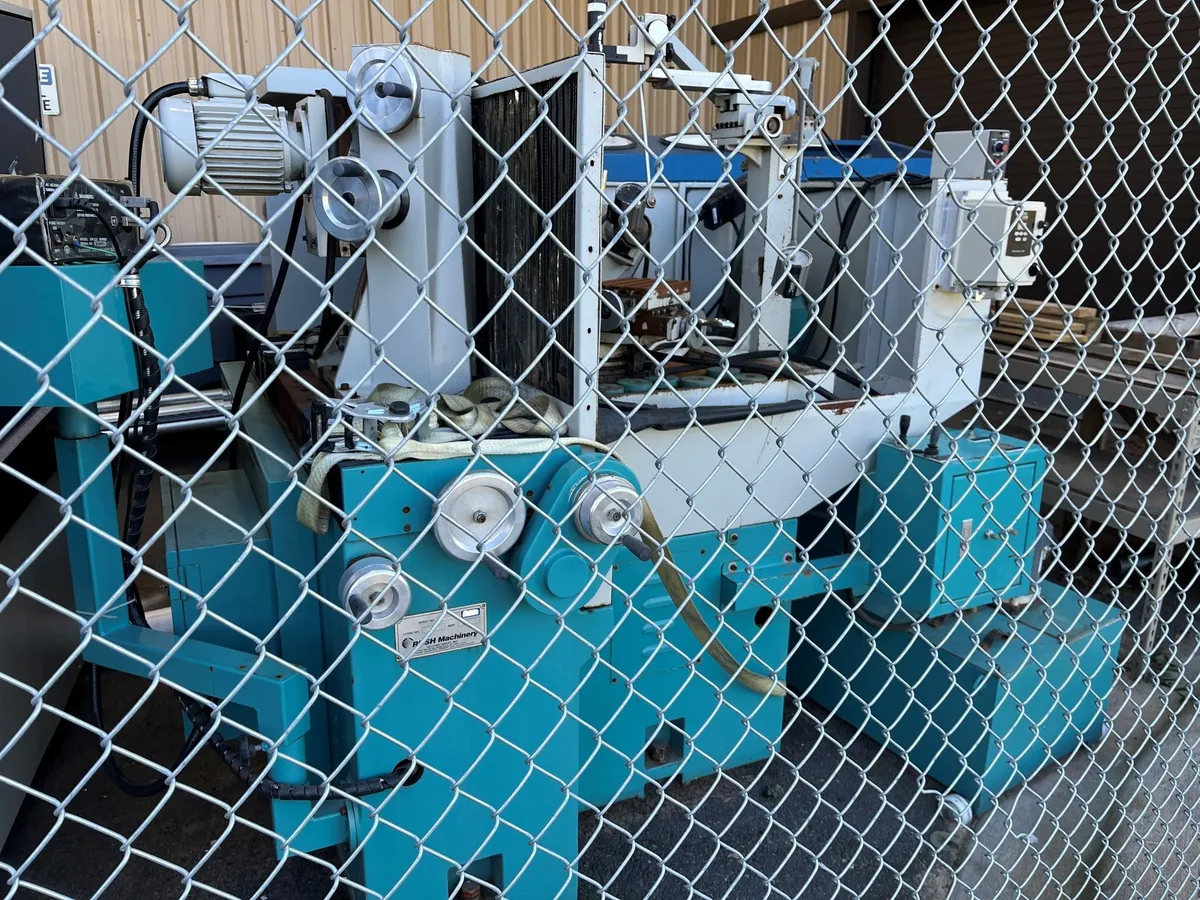

Rush Machinery FC-500D Tool & Cutter Grinder with Video Inspection Comparator

Tip Grinding Radii.....................0 to 8mm (0.315")
Round Tool Shank Diameters.............Diameters: 3 mm (0.118") to 26 mm (1.02") Requires Round Tool Grinding Attachment Option
Shank Types............................Tools with integral shanks (#40, HSK63, etc.) Requires Fine Round Tool Grinding Attachment
Speed..................................3,600 RPM
Power..................................3 HP, 3-Phase, 220 V, 60 Hz (2.2KW)
Height Adjustment (Vertical Travel)....130mm (5.12")
Oscillation Frequency..................0 to 50 SPM
Oscillation Stroke.....................0 - 60mm (2.362")
Oscillation Stroke Range...............0 - 420mm (16.535")
Inclination Angle......................-3° to 25°
Grinding Wheel Size....................150 x 40 x 40mm (6" x 1.5" x 1.5")
Cross table clamping surface...........210mm (8.27 in.) X 160mm (6.30 in.); with 4 “T” slots
Cross table slides.....................Travel up to 95mm (3.74 in.) each
Controlled infeed travel - up to.......130mm (5.118")
Rapid travel...........................To/From grinding position (pneumatic) up to 70mm (3.15 in.)
Cross table swiveling angle - up to....200°
Cross table hand wheel division........0.01mm (0.00039")(1μ)
Grinding force pressure regulator......Quickly adjustable from 0 to 450N (101 lbs.) - pneumatic
Slideway bearings......................Anti-friction (Schneeberger)
DRO 2-Axis Infeed (switchable).........0.001mm (0.00005")
DRO 2-Axis Swivel Angle................0.05 degrees (3 minutes) increments
optical measuring system with zoom.....15X to 120X magnification range with B&W monitor
Coolant system Paper
roll filter & 5μ cartridge filter......100 liters (26.4 gal.)
Central lubrication system.............Capacity .75 liters (25 oz) (auto operated)
Machine Dimensions.....................1830 x 2190 x 1920mm (72" x 86.2" x 75.6")
Machine Weight.........................4,762 LBS

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
