Amada M3060 Power Squaring Mechanical Shear
Have one to sell?
ConditionUsed
1 available

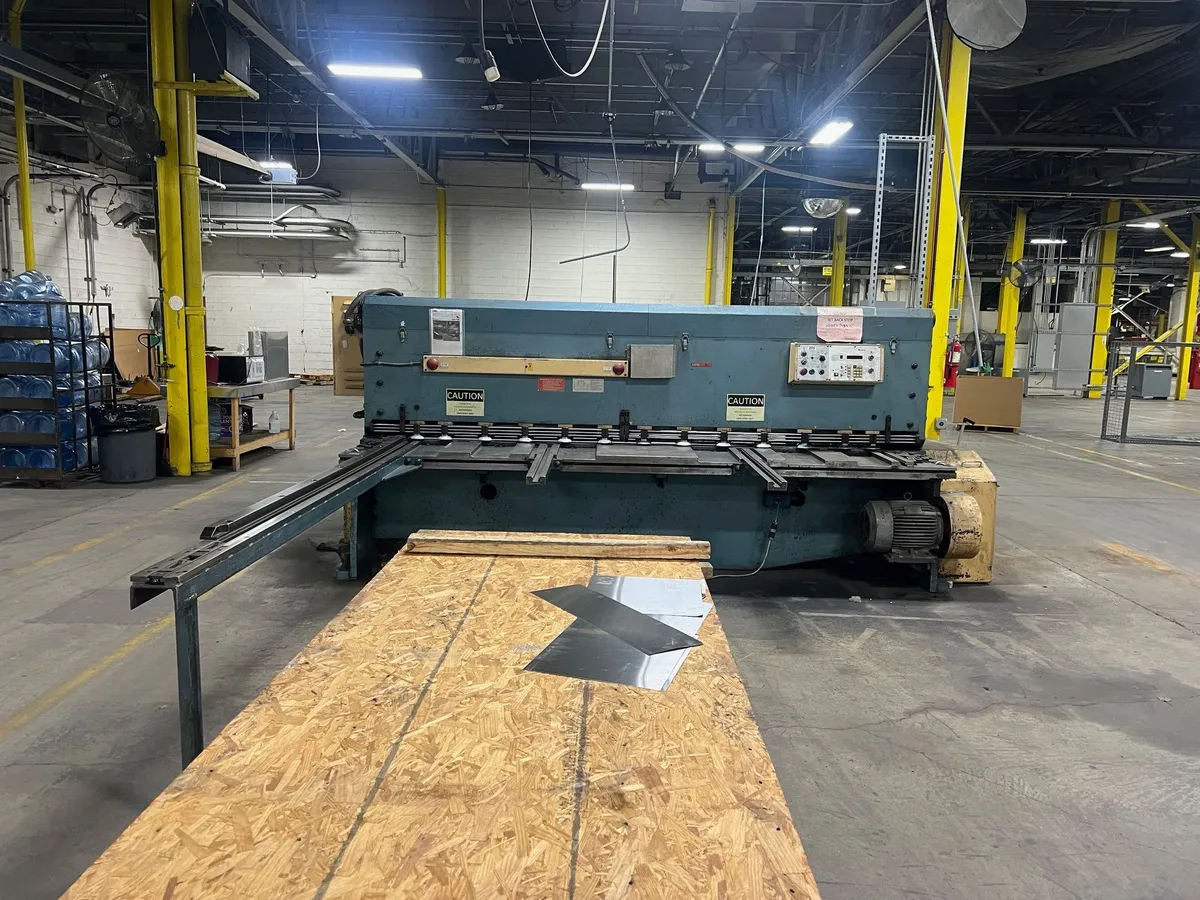

1984 Amada M3060 Power Squaring Mechanical Shear with 10' Squaring Arm, and (2) 31" Support Arms.
Capacity (Mild Steel)...................1/4"
Rake Angle..............................1°
Max Shearing Length.....................120.87"
Knife Length............................133.07"
Back Gauge Length.......................0.25" to 40"
Back Gauge Speed........................1800 IPM
Strokes Per Minute......................60
Throat Gap..............................11.80"
Motor...................................15 HP 220/440/3/60
Approximate Overall Dimensions..........174" L-R x 80" F-B x 71" H
Approximate Overall Weight..............18,520 LBS
Amada Shearing Control
10' Squaring Arm
(2) 31" Front Support Arms
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
