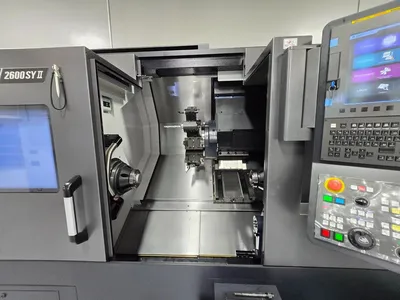

Doosan Puma 2600SY II
Have one to sell?
ConditionUsed
1 available
2022 Doosan Puma 2600SY II with Fanuc Control, Royal QC Collet Chucks for both Spindles, 3-Jaw Chucks for both Spindles, Lots of Live Holders, Parts Catcher, Conveyor, Like New Condition.
Main Spindle Chuck..................10"
Main Spindle Speed..................4000 RPM
Main Spindle Power..................30 HP
Sub Spindle Chuck...................8"
Cub Spindle Speed...................6000 RPM
Sub Spindle Power...................20 HP
Max Turning Diameter................14.8"
Max Turning Length..................29.9"
Through Hole Diameter...............3.2"
Travel Distance X-Axis..............10.2"
Travel Distance Y-Axis..............4.1±2.1"
Travel Distance Z-Axis..............32.7"
Travel Distance B-Axis..............32.7"
Rapid Traverse X-Axis...............1181 in/min
Rapid Traverse Y-Axis...............394 in/min
Rapid Traverse Z-Axis...............1181 in/min
Rapid Traverse C-Axis...............200 RPM
Tooling Shank.......................BMT-65
Turret..............................12 Stations
Boring Bar Diameter.................2"
Live Milling Rotary Tool Speed......5000 RPM
Live Milling Rotary Tool Power......10 HP
Machine Dimensions..................142" x 75" x 85"
Machine Weight......................14,500 LBS
Fanuc 0i Plus CNC Control
Royal QG-80 Collet Chuck Main
Royal QG-65 Collet Chuck Sub
Brand New in Box 10" & 8" 3-Jaw Chucks
Tool Setter
Parts Catcher
Parts Conveyor
Misc Collets
Turbo Chip Conveyor
8 Live Tools
Misc OD & ID Tool Holders
**MACHINE IN LIKE NEW CONDITION WITH VERY LOW HOURS**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
