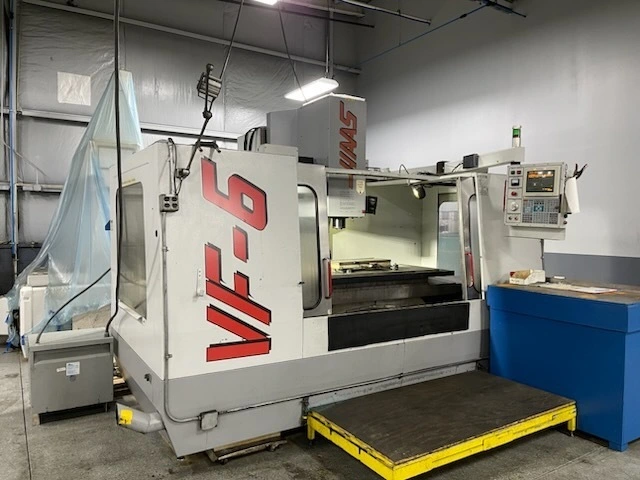

Haas VF-6/40
Have one to sell?
ConditionUsed
1 available
1996 Haas VF-6/40 with 7,500 RPM, CAT-40 Spindle, 20 ATC, Probing, Programmable Coolant Nozzle, 4th Axis Drive & Wiring, Rotary Table available for Extra Cost.
Table Size.........................64" x 28"
Max Table Load.....................4,000 LBS
Spindle Nose to Table..............5" – 35"
X-Axis Travel......................64"
Y-Axis Travel......................32"
Z-Axis Travel......................30"
Spindle Motor......................15 HP (High Torque)
Spindle Taper......................CAT-40
Spindle Speed......................7,500 RPM
Rapid Traverse X / Y, Z............540 / 600 IPM
Tool Magazine Capacity.............20 Position ATC
Dimensions.........................195" x 102" x 130"
Weight.............................22,500 LBS
Haas CNC Control
7,500 RPM, CAT-40 Spindle
4th Axis Drive & Wiring
Probing

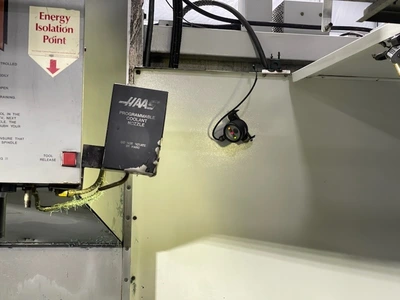

Programmable Coolant Nozzle
Alert Light
Chip Auger
**4th Axis Rotary Table Available At Extra Cost**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
