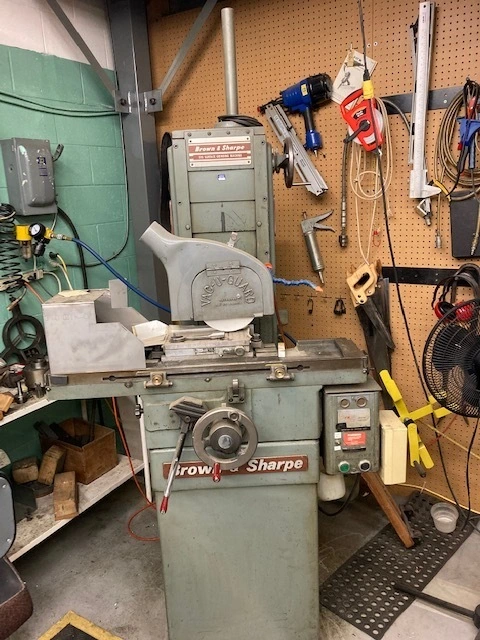

Brown and Sharpe 510 Micromaster Surface Grinder

Grinding Capacity...................................5" x 10"
Height Under 8" Wheel...............................12"
Max Distance from Top of Table to Spindle Center....16"
Spindle Drive.......................................1 HP
Spindle Speed.......................................2,860 RPM
Grinding Wheel Size.................................8" x 1/2"
Wheel Hole..........................................1-1/4"
Traverse Movement by Handwheel......................7"
Handwheel Rim Graduations...........................0.0002"
Fine Feed...........................................0.0001"
Revolution of Handwheel Moves Wheel Traversely......0.100"
Table Working Surface...............................5" x 11"
T-Slots (1).........................................9/16"
Max Longitudinal Travel.............................12"
Vertical Adjustment.................................12-1/2"
Handwheel Graduations...............................0.0002"
Dimensions..........................................36"(L-R) x 44"(F-B) x 70"(H)
Weight..............................................1,500 LBS
