Mazak QTN 250MY
Have one to sell?
ConditionUsed
1 available

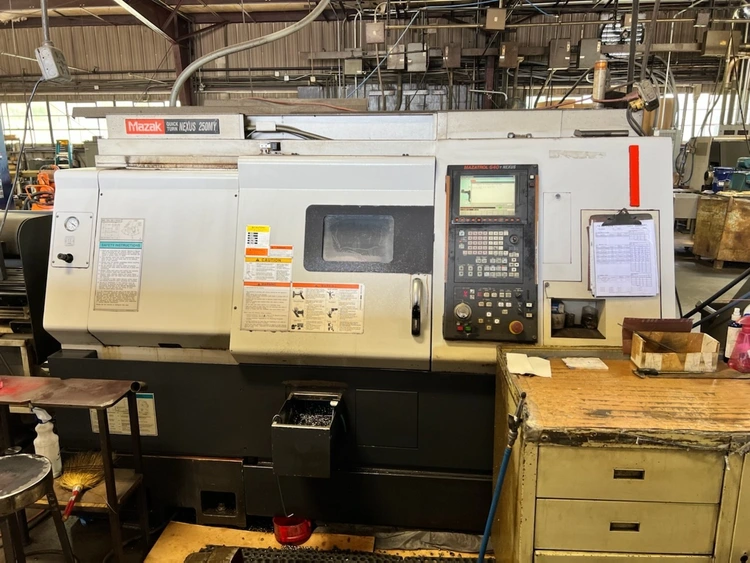

2005 Mazak QTN 250MY with Nexus 640T Control, Collet Chuck, Tool Setter, Parts Catcher, Live Tooling, Y-Axis, Tailstock, Chip Conveyor, LNS Quick Load Servo S3 Barfeed.
Maximum Swing............................26.5"
Maximum Machining Diameter...............14.75"
Maximum Machining Length.................19.86”
X-Axis Travel............................9"
Z-Axis Travel............................22.75"
Y-Axis Travel............................+ or – 2” (4” total)
Spindle Motor............................35 HP
Standard Bar Capacity....................3"
Spindle Speed............................4,000 RPM
Spindle Nose.............................A2-8
Spindle Bore.............................3.46"
Number of Tools..........................12
Tool Size (Outside/Inside)...............1.0" / 1.5”
Turret Index Time (1 Position / Full)....(0.2 / 0.6)
Live Tooling Horsepower..................7.5 HP
Live Tooling Spindle Speed...............4500 RPM
Rapid Traverse Rates X-Axis..............1181 IPM
Rapid Traverse Rates Z-Axis..............1300 IPM
Floor Space Requirement..................73.2" x 111.4" x 73.2"
Weight...................................11,464 LBS
Mazatrol Nexus 640T CNC Control
Collet Chuck
Tool Setter
Parts Catcher
Live Tooling
Y-Axis
Tailstock
Chip Conveyor
LNS Barfeed Interface
ISSUES:
Turret has Two Stripped Bolts
Live Tool Needs Bearing Replaced
Software Issue Reading "Found New Software"
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
