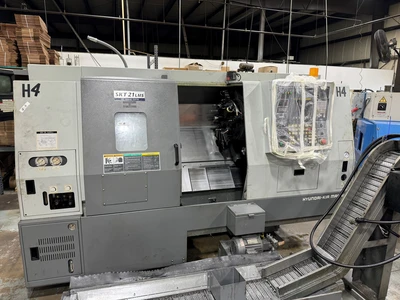

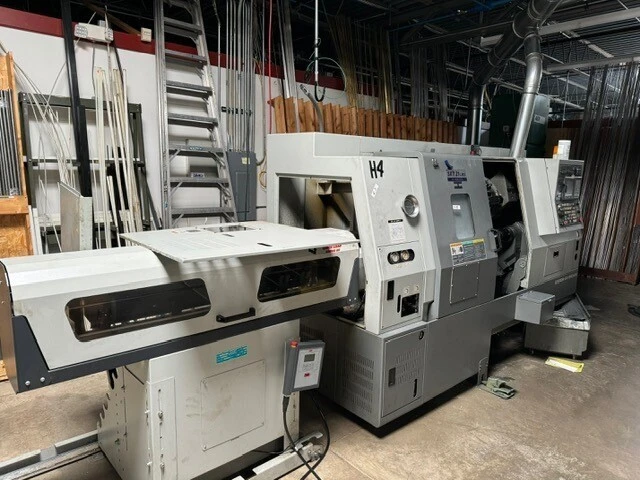

HYUNDAI-KIA SKT 21 LMS MULTI AXIS LATHE

CAPACITY: SWING OVER BED / SWING OVER SADDLE...........21.7" / 13.8"
MAXIMUM TURNING DIAMETER / LENGTH......................10.2" / 20.87"
SPINDLE: SPINDLE SPEEDS................................25 - 4,000 RPM
SPINDLE BORE / BAR CAP / SPINDLE NOSE..................3.1" / 2.56" / A2-6
MAIN MOTOR (30 MIN. / CONTINUOUS)......................20 / 15 HP
SUB-SPINDLE: SPEEDS....................................40 - 4,000 RPM
SPINDLE BORE / BAR CAP / SPINDLE NOSE / INDEXING.......1.7" / 1.3" / A2-8
MOTOR (30 MIN. / CONT.)................................5 / 3 HP
TURRET: NUMBER OF POSITIONS............................12 STATIONS
X-AXIS TRAVEL..........................................8.3"
Z-LONGITUDINAL.........................................21.7"
ROTARY TOOLS: ROTARY TOOL SPEED........................30 - 4,000 RPM
ROTARY TOOL MOTOR (30 MIN. / CONTINUOUS)...............5 / 3 HP
RAPIDS: RAPID TRAVERSE (X / Z )........................590 / 708 IPM
FEED RATE (X & Z ).....................................0.04 - 157 IPM
DIMENSIONS: FLOOR SPACE (L X W X H)....................120" X 66" X 80"
WEIGHT (APPROX)........................................10,000 LBS
