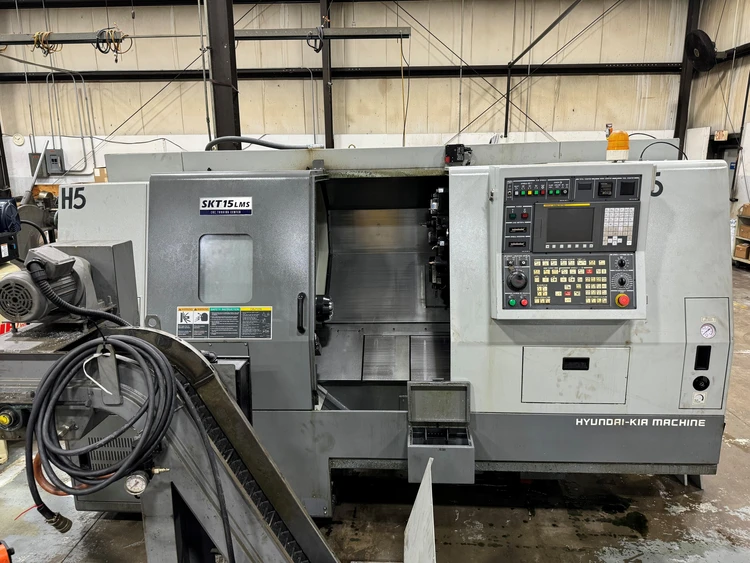

Hyundai SKT15LMS CNC Turning Center with Sub-Spindle & Live Tooling

Maximum Swing.................21.7"
Turning Diameter..............10"
Turning Length................20.9"
Spindle Bore..................2.2"
Bar Capacity..................1.7"
Chuck Size....................6"
Main Spindle Motor............15 HP
Spindle Speed.................6,000 RPM
Sub-Spindle Speed.............6,000 RPM
Sub-Spindle Motor.............5 HP
Sub-Spindle Bore..............1.69"
Sub-Spindle Bar Capacity......1.30"
Sub Spindle Chuck Size........5"
Turret Tool Positions.........12"
X-Axis Travel.................8.7"
Z-Axis Travel.................21.7"
B-Axis Travel.................29.5"
Rapids........................1,417, 1417, 1181 IPM
Floor Space...................120" x 65"
Weight........................9,480 LBS
