Gildemeister GM-20AC
Have one to sell?
ConditionUsed
1 available

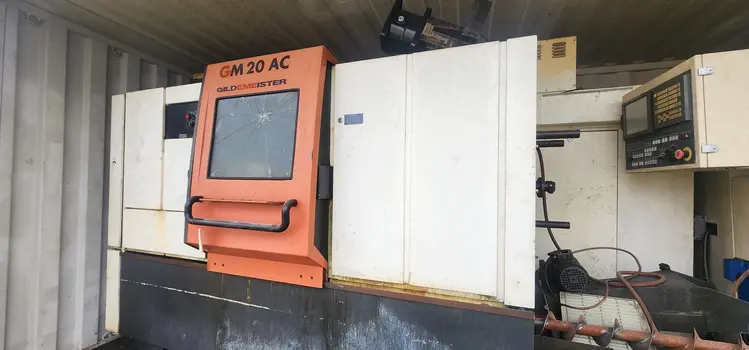

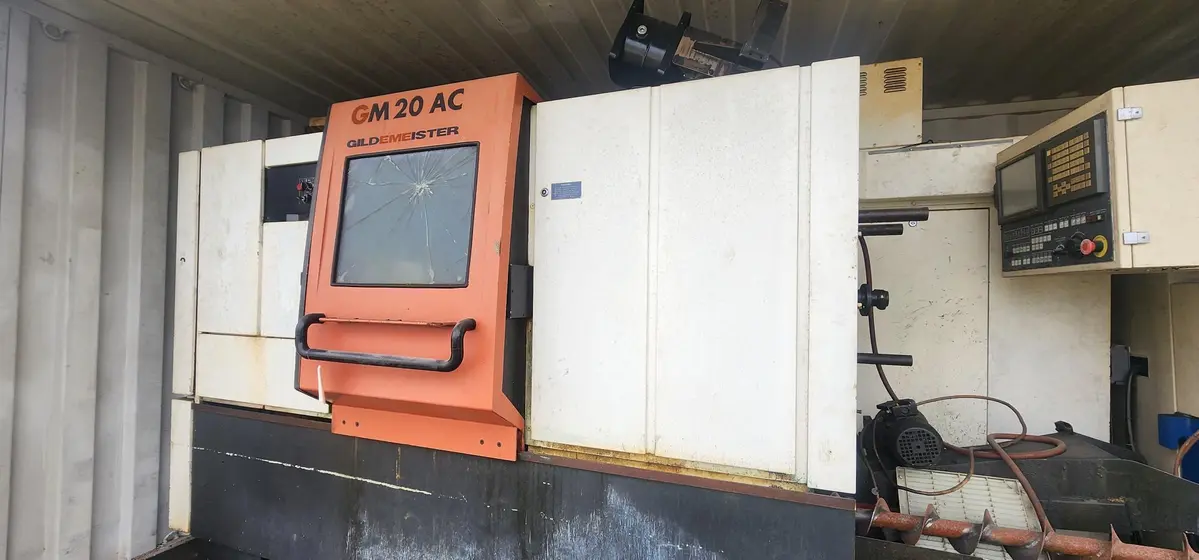

1996 Gildemeister GM-20AC - Machine Needs Repair but has All the Parts and Accessories Ready.
Bar Capacity - Round mm 20 (with oversize kit 25mm)
Bar Capacity - Square mm 14 (with oversize kit 17mm)
Bar Capacity - Hexagon mm 17 (with oversize kit 21mm)
Bar Feeding mm 100/180 (double opening)
Longitudinal Units Ride mm 0-86
Slides - All Stations mm 0-42
Slide - Stations 1,2,4,5 mm 50
Main Motor Power kW 11
Spindle Speed - 1st Range min/max 395-2020
Spindle Speed - 2nd Range min/max 690-5000
Minimal Cycle Time sec 1.38
Idle Time sec 0.7
Power Nm 22
Threading Motor Power Nm 22
