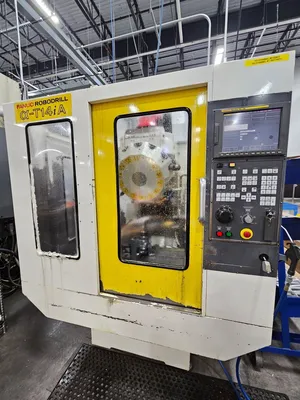

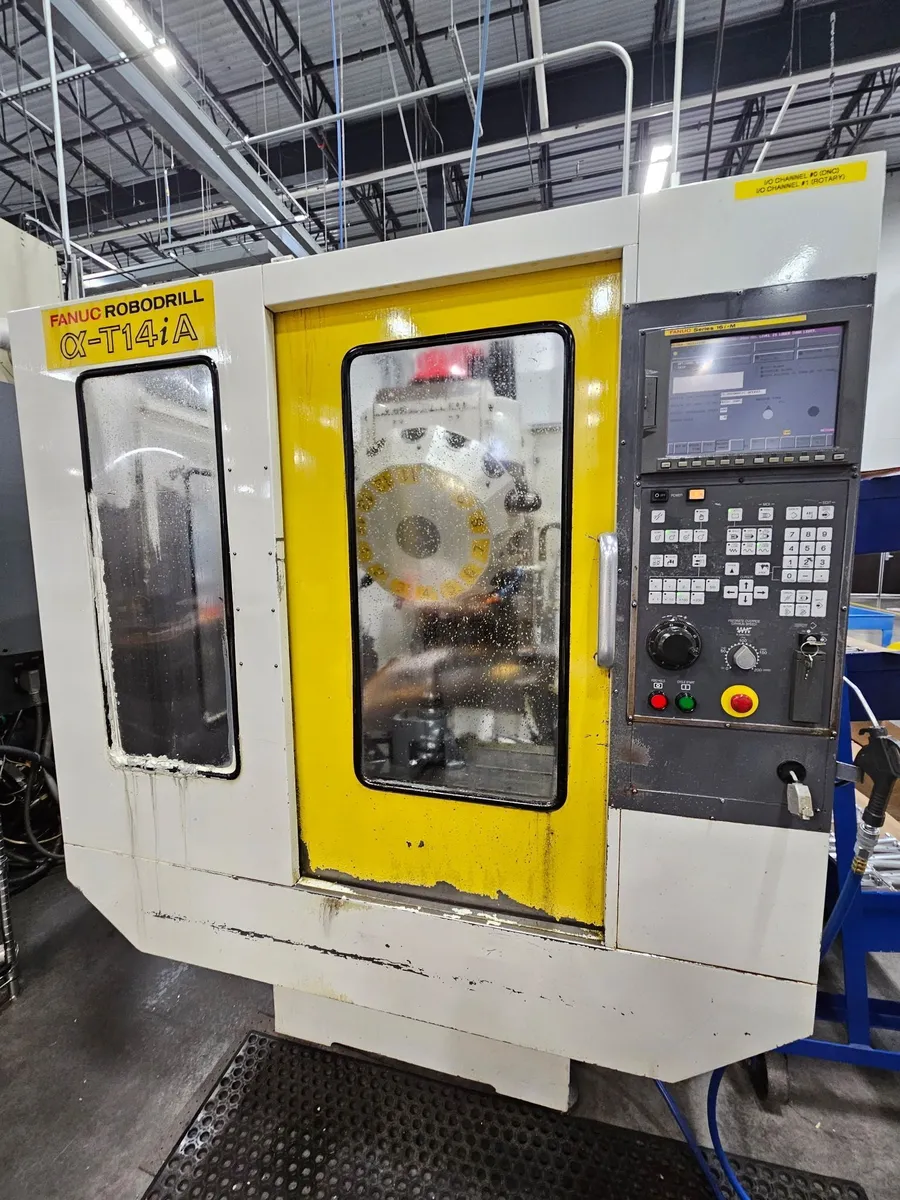

Fanuc Robodrill Alpha T14iA

Table Size.......................25.59" x 14.96"
Maximum Table Load...............440 LBS
Spindle Nose to Table Top........5.9" - 17.71"
X-Axis Travel....................19.6"
Y-Axis Travel....................14.96"
Z-Axis Travel....................11.81"
Spindle Motor....................7.5 HP
Spindle Taper....................BT-30
Spindle Speeds...................80 - 8000 RPM
Rapid Traverse Rates.............1889 IPM
Cutting Feed Rate................0.1 - 787 IPM

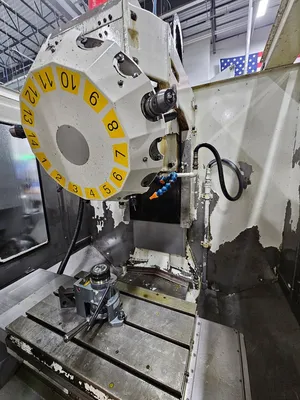

Tool Changer Capacity............14 Station ATC
Chip / Coolant Pan...............52" x 18" x 18"; 145 LBS
Machine Dimensions...............73" x 61" x 87"
Machine Weight...................4,000 LBS
