Haas MDC-500 2-Pallet Vertical Machining Center
Have one to sell?
ConditionUsed
1 available

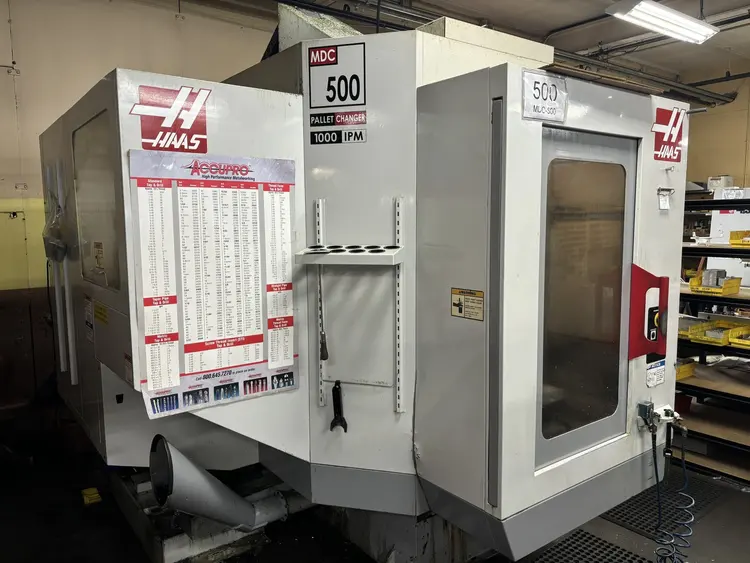

2005 Haas MDC-500 2-Pallet Vertical Machining Center with 1 MB Memory, 7,500 RPM, CAT-40 Spindle, 24 Station ATC, and Chip Auger.
Table Size.....................20" x 12.75"
Number of Pallets..............2
Spindle Nose to Table..........4" - 24"
Max. Part Size.................20" x 14" x 20"
Pallet Change Time.............4.7 Seconds
T-Slot Center Distance.........4.92"
T-Slot Width...................5/8"
X-Axis Travel..................20"
Y-Axis Travel..................14"
Z-Axis Travel..................20"
Spindle Motor..................20 HP
Spindle Taper..................CAT-40
Spindle Speed..................7,500 RPM
Rapid Traverse (X,Y,Z).........1000 IPM
Tool Changer Capacity..........Side Mount 24+1
Machine Dimensions.............114" x 120" x 135"
Machine Weight.................16,000 LBS
Haas CNC Control
1 MB Memory
2-Station Pallet Changer
7,500 RPM, CAT-40 Spindle
1,000 IPM Rapids
24 ATC
HOURS:
Power on Time.............1,224
Cycle Start Time..........802
Feed Cutting Time.........343
**MACHINED ALUMINUM, BRASS, AND STAINLESS FOR 1 SHIFT
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
