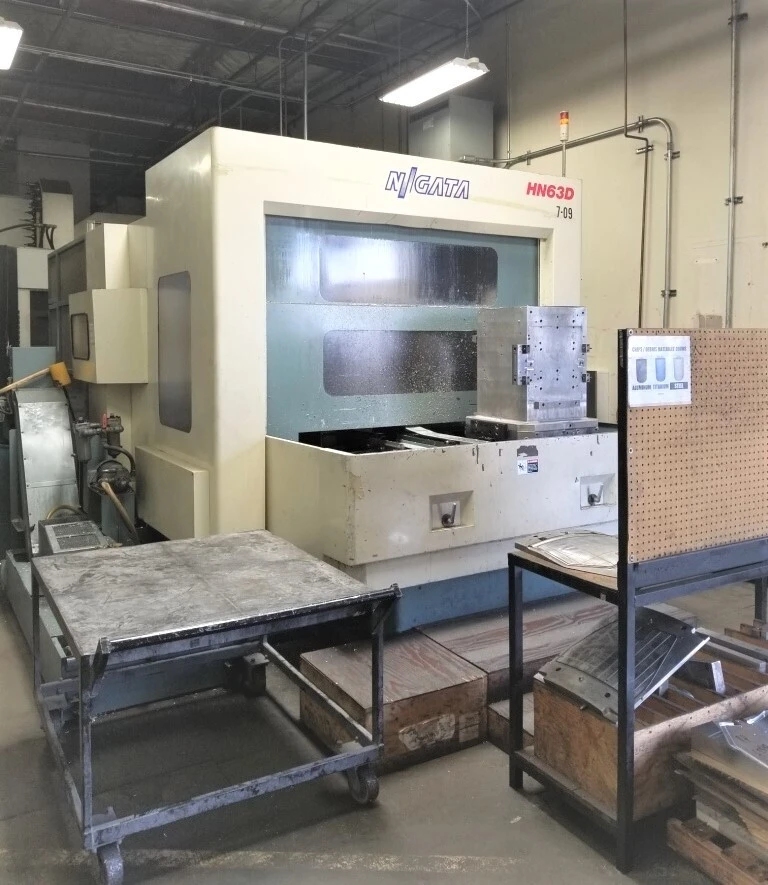

Niigata HN63D Horizontal Machining Center
Have one to sell?
ConditionUsed
1 available
2005 Niigata HN63D Horizontal Machining Center with Fanuc 16i-MB Control, Full 4th Axis, 10,000 RPM, CAT-50 Spindle, 60 Station ATC, Only 10,915 Cutting Hours.
Pallet Size................................24.8" x 24.8"
Number of Pallets..........................2
Table Load Capacity........................2,646 LBS
Spindle Nose To Table Top..................7.9" - 37.4"
Table Indexing.............................0.001 Degree
X-Axis Travel..............................39.4"
Y-Axis Travel..............................33.5"
Z-Axis Travel..............................29.5"
Spindle Motor..............................35 HP
Spindle Taper..............................CAT-50
Spindle Speed..............................10,000 RPM
Tool Magazine Capacity.....................60 Position ATC
Max. Tool Diam./Length/Weight..............9.4"/15.76"/44 LBS
Tool Change Time (tool to tool)............6.8 Seconds
Rapid Traverse Rates.......................1181 IPM
Cutting Feedrate...........................591 IPM
Machine Dimensions.........................220" x 140" x 128"
Machine Weight.............................35,800 LBS
Fanuc 16i-MB
Through Spindle Coolant
Full 4th Axis
60 Position Toolchanger
Chip Conveyor
Chip Augers
Large Diameter 3.94" Spindle Head
RS 232 Port Interface
Rigid Tapping
Remote Pulse Generator
All Boxed Way Design
All Available Manuals
**10,915 CUTTING HOURS AS OF 6/12/24**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS**
