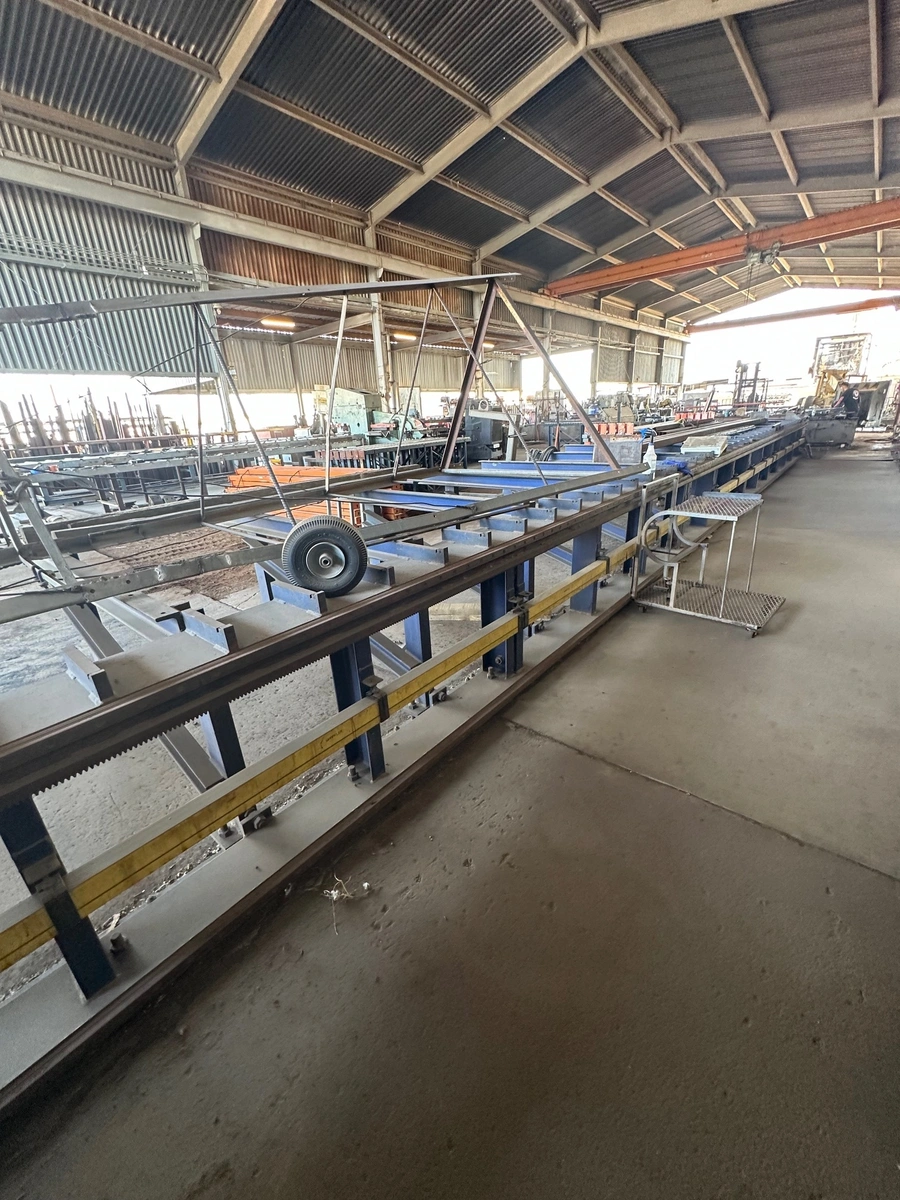

Ocean Avenger (Peddinghuas) CNC Beam Drill Line

Section Size.........................40" x 47' (Optional Bed Sections Available for Longer Lengths)
Drilling Capacity....................1-9/16"
Material Thickness...................1-1/4" With External Spray Mister Coolant System; Limited Only
by Drill Length with Through the Tool Hole Coolant System
Maximum Speed X-Axis.................67 FPM
Maximum Speed Y-Axis.................49 FPM
Spindle Motor........................5 HP
Spindle Speeds.......................0-545 RPM (Continuously Variable)
Drilling Feed Rate...................2-3/4 - 8 IPM
Spindle Stroke.......................12" Max
Vice Clamping Power..................5 Tons
Total Installed Power................7 kW
Power Supply.........................460/480V, 3 PH, 60 HZ, 40 AMPS
