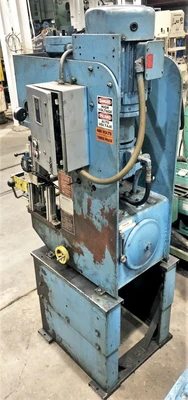

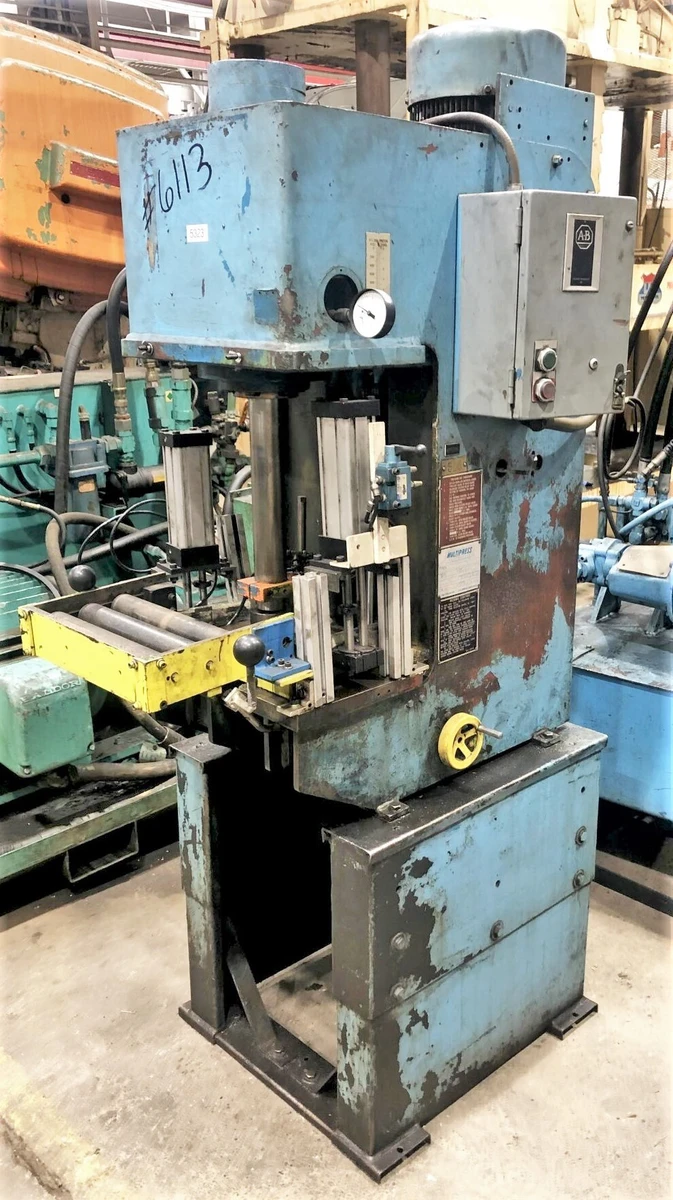

Multipress WR87M C-261 8-Ton Hydraulic Press

CAPACITY......................8 TONS @ 1,930 PSI
MAX. STROKE...................12"
MAX. DAYLIGHT TO BED..........16"
BED AREA......................18" X 11" (RL X FB)
RAM ROD DIAMETER..............2.25" DIA.
CYLINDER SIZE.................3.25" DIA. BORE
THROAT DEPTH..................7.5"
FLOOR TO BED..................36” (10” ACTUAL ON 26” RISER)
SPEEDS (IPM)..................784 APPROACH / 284 PRESSING / 862 RETURN
HYDRAULICS PUMP MODEL.........T5C-005 | 10 GALLON HYDRAULIC RESERVOIR
ELECTRICAL....................7.5 HP 210-230/460V-3-60 MARATHON ELECTRIC MOTOR | 22-20/10 AMPS
APPROX. DIMENSIONS............34" X 45" (RL X FB) X 80" HIGH
APPROX. WEIGHT................1,800 LBS.
