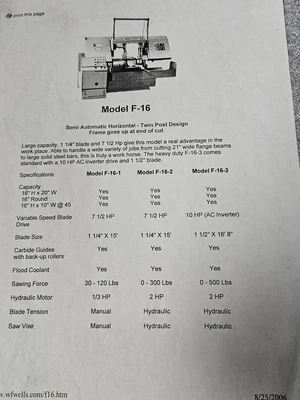

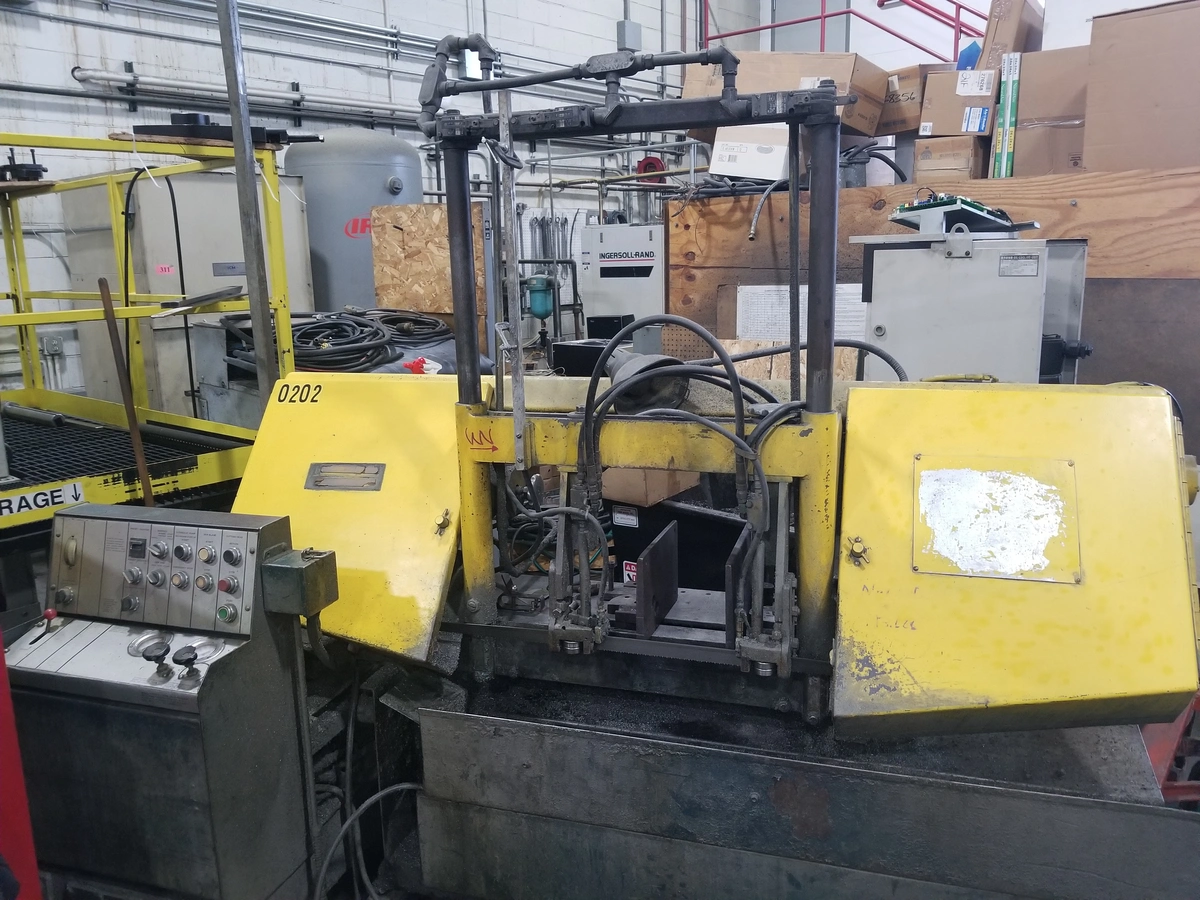

W.F. Wells F-16-2 16" x 20" Semi-Automatic Horizontal Saw

Capacity.......................Rectangular at 90° 16" High x 20" Wide, Round at 90° 16" Diameter
Rectangular at 45° 16" High X 9" Wide, Round at 45° 9" Diameter
Weight Capacity................5,000 lbs
Blade Speed....................60-425 SFPM
Blade Size.....................1¼” X .042" X 15′
Blade Guide....................Rollers and Carbide Side Blocks
Blade Tension..................Hydraulic
Bandwheel Size.................20"
Vise...........................Full Stroke Hydraulic, 8-1/2”
Blade Drive....................7½ HP, AC Vector Drive
Sawing Force...................0-300 lbs
Coolant Capacity...............15 Gallons
Hydraulic Capacity.............20 Gallons
Hydraulic Drive................2 HP Motor
Work Height....................26"
Electrics......................460V/3PH/60HZ
Machine Dimensions.............97" Length x 49" Width x 83" Height
Shipping Weight................2,450 lbs
